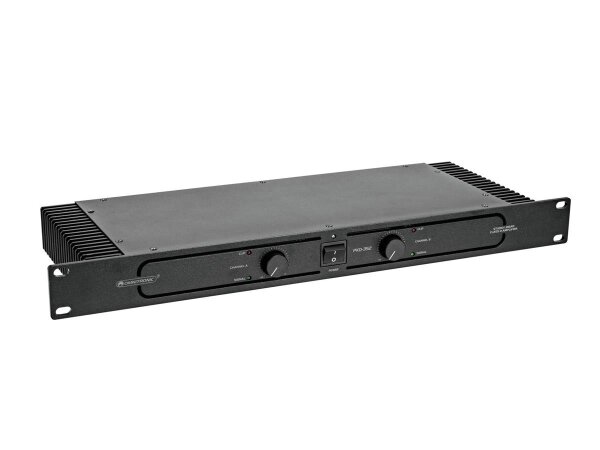

2-channel studio amplifier with SMPS, 2 x 175 W / 4 ohms, 2 x 100 W / 8 ohms
- Low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridged)
- 2 level controls
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- The device is cooled by passive convection cooling
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
70 W 1/8 power |
| Protection class: |
Protection class I |
| Output power: |
2 x 175 W RMS (4 ohms)
2 x 100 W RMS (8 ohms)
350 W RMS bridged (8 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable length: |
1 m detachable |
| Device fuse: |
4 x 10 mm, T 3,15 A Fuse fix on board |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>105 dB |
| THD: |
<0,05 % at 1 kHz |
| Cooling: |
Passive convection cooling |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Gain: |
38 dB |
| Housing color: |
Black |
| Circuitry: |
Class D |
| Slew rate: |
20 V/µs |
| Damping factor: |
>300 |
| Control elements: |
Power switch, level control per channel, mode switch (stereo/bridged), Input sensitivity switch |
| Controls: |
Softstart; DC voltage; VHF; current limiting; short-circuit; limiter; overheat |
| Status LED: |
Power, signal, clip |
| Connections: |
Input: line via 2 x 3-pin XLR
Input: line via 2 x RCA (F) mounting version
Output: speaker via 2 x speaker built-in socket (F)
Output: speaker via 2 x screw terminal |
| Input sensitivity: |
0,775 V; 1,4 V , switchable |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 19 cm
Height: 4,4 cm |
| Weight: |
2,81 kg |
| Shipping weight: |
3,30 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
7,50 × 54,50 × 27,00 cm |
