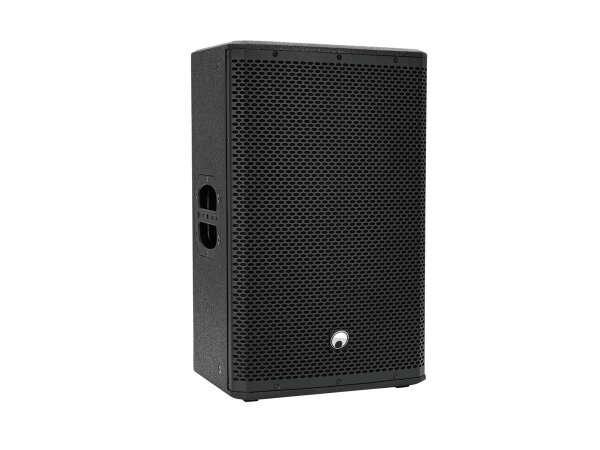

Active speaker with 12" woofer, 1" driver, 100 W HF, 50 W RMS HF
- Active PA speaker system for touring applications and permanent installations
- Optimized for combination with PAS subwoofers
- DSP-controlled biamp amplifier (class D)
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor
- DSP presets: MUSIC; LIVE; CLUB; VOICE
- Black metal grille with acoustic foam
- With rigging points
- Dual flange
- 2 Rugged carrying handles
- Control via Bluetooth
- Bluetooth: operating range up to 10m
- The device is cooled by cooling fan
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x declaration of conformity
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
650 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: |
5 x 20 mm, T 4 A fuse replaceable |
| Power: |
Program: 500W LF
Program: 100W HF
Rated: 250W RMS LF
Rated: 50W RMS HF |
| Frequency range: |
60 - 20000 Hz |
| Max. SPL: |
123 dB |
| DSP: |
Digital signal processor |
| DSP presets: |
MUSIC; LIVE; CLUB; VOICE |
| Dispersion angle: |
90° x 60° |
| Cooling: |
1 x cooling fan |
| Low cut: |
100Hz, switchable |
| Control: |
Bluetooth |
| Bluetooth: |
With stereo link (TWS) |
| Bluetooth device name: |
Omnitronic PAS-212A MK4 |
| Range: |
Bluetooth: range up to 10m |
| Attachment system: |
Dual flange: |
| Flying points: |
12 x M8 thread; 4 x M10 thread |
| Circuitry: |
Class D Biamp |
| Control elements: |
Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch |
| Controls: |
Limiter; power on/off transients |
| Status LED: |
Power, signal, peak, low cut, pairing; stereo, DSP presets |
| Connections: |
Input: Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR (M) mounting version |
| Speaker: |
1 x woofer 12" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
Voice coil lows 3"
1 x tweeter 1" with ferrit magnet
Voice coil compression tweeter highs 1,75" |
| Type of speaker: |
Compact cabinet speaker |
| Type of construction: |
Vented |
| Carrying handle: |
2 pc/pcs |
| Grid size: |
7,5 mm |
| Material: |
Plywood multi-layer glued, 15 mm, painted |
| Color: |
Black |
| Dimensions: |
Width: 36,5 cm
Depth: 59 cm
Height: 38 cm |
| Weight: |
20,55 kg |
| Shipping weight: |
22,45 kg
|
