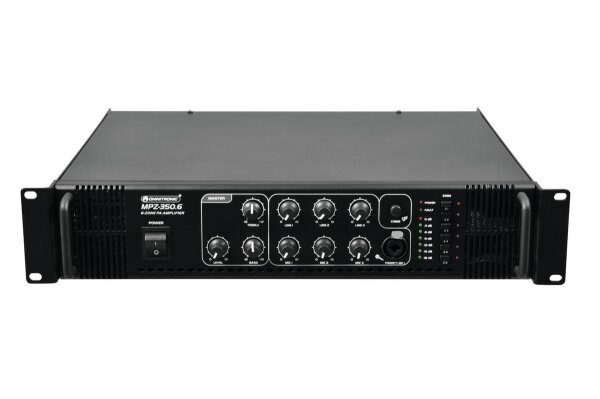

6-zone PA mono mixing amplifier
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs, independently switchable on the front panel
- Master PA output (70 V and 100 V)
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation
| Power supply: |
230 V AC, 50 Hz ~ |
| Power consumption: |
700 W |
| Output power: |
350 W RMS |
| Output type: |
70 V, 100 V or 4-16 ohms |
| Output current: |
5 A (70 V), 3.5 A (100 V) |
| Mic inputs: |
5 mV, 600 ohms |
| Line inputs: |
300 mV, 10 kohms |
| Speaker connectors: |
Screw connectors, terminal block |
| Frequency range: |
80 Hz - 16 kHz |
| Distortion: |
0.5 % (1 kHz) |
| S/N ratio: |
85 dB (line), 75 dB (mic) |
| Dimensions: |
483 x 385 x 92 mm |
| Weight: |
16 kg |
| Shipping weight: |
16.00 kg |
| Shipping weight: |
14,40 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
18,00 × 55,00 × 48,00 cm |
