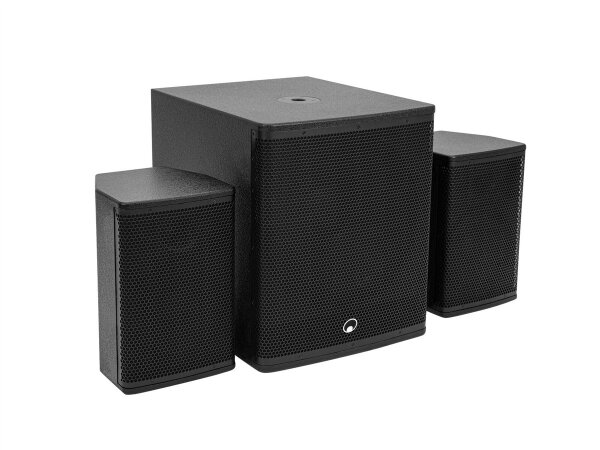

Mobile 2.1 system with DSP, mixer, stereo Bluetooth link, 800 W RMS
Omnitronic MAXX-1508NG Active Subwoofer 15"
High-power 15" active subwoofer with DSP and Bluetooth, 800W RMS
- Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
- 4-channel mixer
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Black metal grille with acoustic foam
- 2 Rugged carrying handles
- Wheels optional
- 4 x rubber feet
integrated amplifier module
- Digital signal processor
- DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- Multicolor LCD display
- The device is cooled by low-noise cooling fan
Omnitronic MAXX-1508NG 2-way Top 8"
8" passive full-range speaker, 150 W RMS
- Black metal grille with acoustic foam
- Rugged carrying handle
- 4 x rubber feet
Scope of delivery
1 x Omnitronic MAXX-1508NG Active Subwoofer 15"
- 1 x bass
- 1 x power cord
- 1 x user manual
- 1 x declaration of conformity
2 x Omnitronic MAXX-1508NG 2-way Top 8"
- 1 x top
- 1 x speaker cable
| Output power: |
800 W RMS system |
| Frequency range: |
40 - 20000 Hz system |
| Max. SPL: |
132 dB system |
| Weight: |
45.05 kg |
| Omnitronic MAXX-1508NG Active Subwoofer 15" |
| Frequency range: |
40 - 150 Hz bass |
| Max. SPL: |
129 dB |
| DSP: |
Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ |
| Attachment system: |
M20 thread |
| Speaker: |
1 x woofer 15" with ferrit magnet
Basket material: steel
Voice coil lows 3"
Conematerial: cardboard/paper |
| Type of speaker: |
Subwoofer |
| Type of construction: |
Vented |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
Wheels optional
4 x rubber feet |
| Material: |
MDF (medium density fiberboard), 15 mm |
| Color: |
Black, textured coating, painted |
| Dimensions: |
Width: 43.5 cm
Depth: 52 cm
Height: 51 cm |
| Integrated amplifier module |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
400 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Output power: |
1 x 500 W RMS LF
2 x 150 W RMS (8 ohms) HF
1 x 300 W RMS (4 ohms) HF |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: |
5 x 20 mm, T 3.15 A fuse replaceable |
| DSP: |
Digital signal processor |
| DSP presets: |
MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT |
| Cooling: |
1 x low-noise cooling fan |
| Filter: |
Low cut: 80 Hz |
| Control: |
Bluetooth |
| Bluetooth device name: |
MAXX-1508NG |
| Range: |
Bluetooth: range up to 10m in buildings |
| Carrier frequency: |
2.4 GHz |
| Circuitry: |
Class D |
| Display type: |
Multicolor LCD display |
| Control elements: |
Power switch, encoder, menu, BACK button |
| Controls: |
Overheat; short-circuit; DC voltage; limiter |
| Status LED: |
Limit |
| Connections: |
Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x RCA (F) mounting version
Output: line via 2 x 3-pin XLR (M) mounting version
Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: |
1 x stereo via RCA, channel control via rotary dial
3 x mono via XLR or jack, channel control via rotary dial |
| Crossover frequency: |
100 Hz |
| Power cord |
| Cable construction: |
3 x 0.75 mm² H05VV-F |
| Cable length: |
1.8 m |
| Weight: |
0.13 kg |
| Omnitronic MAXX-1508NG 2-way Top 8" |
| Power: |
Program: 300W
Rated: 150W RMS |
| Frequency range: |
90 - 20000 Hz |
| Sensitivity: |
93 dB (1W/1m) |
| Max. SPL: |
118 dB |
| Dispersion angle: |
90° x 70° |
| Impedance: |
8 ohms |
| Attachment system: |
Flange: Ø 35mm |
| Connections: |
Speaker via 1 x speaker built-in socket (F) |
| Crossover frequency: |
2800 Hz |
| Speaker: |
1 x woofer 8" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
Voice coil lows 1,5"
1 x compression tweeter highs 1"
Voice coil compression tweeter highs 1" |
| Type of speaker: |
Compact cabinet speaker |
| Type of construction: |
Vented |
| Carrying handle: |
1 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Material: |
MDF (medium density fiberboard), 15 mm, painted |
| Color: |
Black, textured coating, painted |
| Dimensions: |
Width: 27 cm
Depth: 27 cm
Height: 44.2 cm |
| Weight: |
9.90 kg |
| Top |
| Weight: |
9.1 kg |
| Speaker cable |
| Cable construction: |
1 x speaker cable |
| Cable length: |
5 m |
| Shipping weight: |
51,18 kg
|
