The power of the phantom!

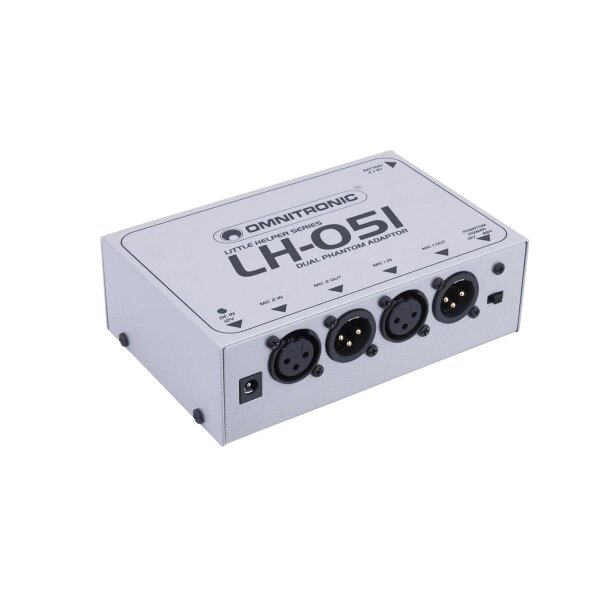

Sometimes you only need a minor detail, to get happy. So you have a mixer without phantom power, but you want to work with a condenser or electret microphone. Then there is only one thing, that is missing: the Omnitronic LH-051. It is a little helper and the ideal accessory for your mixer and supplies the microphones with 12 and 48 volts respectively. Inputs and outputs of the LH-051 are realized with balanced XLR connectors and the operation runs via 2 x 9 V block battery or optional power unit. Enjoy recording!
Phantom power for 2 microphones
- Phantom power supply for condenser or electret microphones
- Selectable +12/ +48 V power supply
- Ideal accessory for mixers without phantom power
- Inputs and outputs via balanced XLR connectors
- Operation via 2 x 9 V block battery or power unit (not included)
| Power supply: |
12 V DC or 2 x 9 V block |
| Output voltage: |
+12 V/ +48 V DC, ±2 V DC |
| Input impedance: |
600 ohms |
| Output impedance: |
600 ohms |
| Dimensions: |
143 x 93 x 45 mm |
| Weight: |
485 g |
| Shipping weight: |
0.75 kg |
| Shipping weight: |
0,75 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
8,50 × 22,50 × 13,00 cm |
