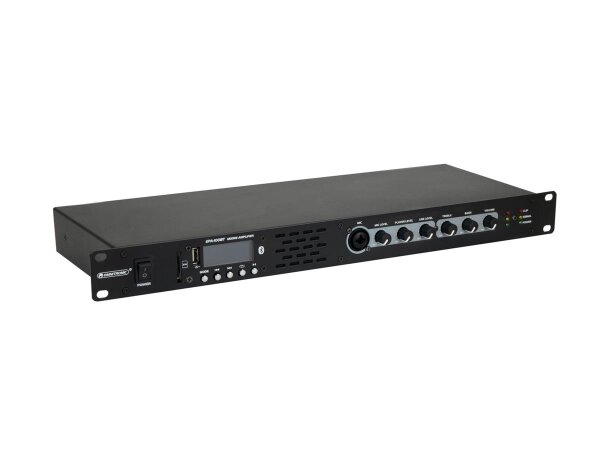

The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.
19" mixing amplifier with audio player, Bluetooth and 2 x 50 watts power
- 1 U flat stereo mixing amplifier with 2 x 50 watts power
- For quick-access music playback control in restaurants, fitness studios and retail locations
- Built-in audio player with USB port and SD card slot
- Blue backlit LCD screen
- Integrated Bluetooth audio streaming
- Adjustable stereo line input via XLR and RCA jacks
- Adjustable microphone input on the front panel
- Controls for volume, bass and treble
- Signal, clip and power indicators
- Stereo line output via XLR and RCA jacks
- Screw terminals for low-impedance speakers
- Groundlift switch against humming
- Limiter for overload protection
- Efficient class D circuitry
- Low weight and height due to integrated switch mode power supply
- Rack installation, 1 U
- Master equalizer: 1 x 2 band tone control Stereo
- Housing design: (19") 48.3 cm rack installation built-in 1 U
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
100 W |
| Power/channel (4 Ohm): |
50 W |
| Power/channel (8 Ohm): |
30 W |
| Frequency range: |
20 - 20000 Hz |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Cooling fan: |
Yes |
| Connections: |
2 x 2-pole clamp |
| Audio player: |
USB + SD + Bluetooth |
| Range: |
10 m Bluetooth |
| Carrier frequency: |
2,4 GHz |
| Housing design: |
(19") 48.3 cm rack installation built-in 1 U |
| Width: |
48,3 cm |
| Height: |
4,45 cm |
| Depth: |
21 cm |
| Weight: |
2,59 kg |
| Inputs: |
|
| Line: |
RCA and XLR, balanced |
| Mic: |
combination XLR/6.3 mm jack, balanced |
| Outputs: |
|
| Line: |
RCA and XLR, balanced |
| Circuitry: |
class D |
| Audio player: |
|
| Playback format: |
MP3, WMA, WAV |
| Available storage media: |
USB devices and SD(HC) cards up to 32 GB |
| Shipping weight: |
2,90 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
7,50 × 53,00 × 27,00 cm |
