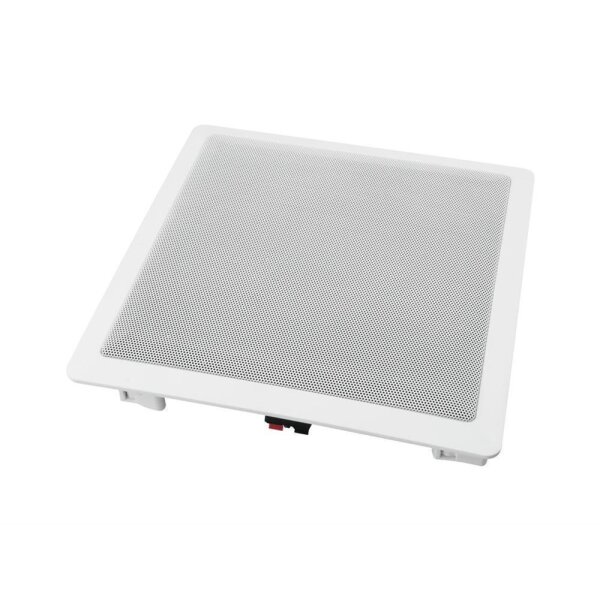

10" flush-mount speaker, dual voice coil, 90 W RMS, 2 x 8 ohms, 268 x 268 mm
- Flush-mount speaker for the bass support of PA systems
- Dual voice coil 2 x ohms
- Safe and easy installation with screw clips
- Plastic housing with protective metal grille
- Flat profile for inconspicuous installation
- For a ceiling thickness up to 30 mm
- A crossover is required for system integration
- Matching transformers for use in 100 V lines available as accessory
| Rated power: |
90 W RMS |
| Program power: |
180 W |
| Components: |
25 cm woofer (10"), 24 oz magnet |
| Connection: |
Spring clamps |
| Impedance: |
2 x 8 ohms |
| Sensitivity: |
89 dB |
| Frequency range: |
30-4000 Hz |
| Dimensions (L x W x H): |
303 x 303 x 97 mm |
| Mounting cutout: |
268 x 268 mm |
| Mounting depth: |
90 mm |
| Weight: |
2.4 kg |
| Shipping weight: |
2,73 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
13,00 × 33,00 × 32,00 cm |
