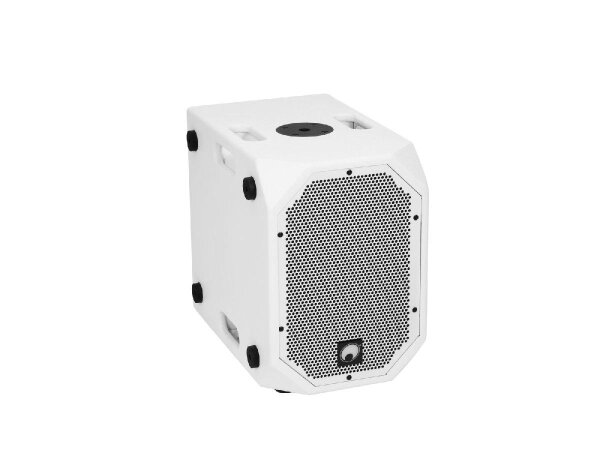

10" subwoofer with DSP and Bluetooth for the BOB series
- 10" bassreflex subwoofer with DSP and 600 watts RMS power
- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover
- Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
- Parallel XLR outputs for linking further BOB systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- Two M20 metal flanges for mounting satellite speakers
- MDF enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport
- Stackable via recesses when set up horizontally
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
1060 W |
| Amplifier power: |
LF 300 W RMS + HF 2 x 300 W RMS |
| LF speaker: |
25 cm (10") with 50 mm voice coil |
| Frequency range: |
45-250 Hz |
| Sensitivity: |
100 dB |
| Maximum SPL: |
125 dB |
| Signal input: |
combination XLR/6.3 mm jack L/R and RCA L/R |
| Parallel output: |
XLR L/R |
| Satellite: |
Speaker L/R |
| Dimensions (L x W x H): |
470 x 300 x 430 mm |
| Weight: |
16.5 kg |
| Weight: |
17,00 kg |
| Size of woofer: |
(10") ca. 25 cm |
| Frequency range: |
45 - 250 Hz |
| Material: |
MDF (Medium-density fibreboard) Bass |
| Number of bass-woofer: |
1 Pc/Pcs |
| Length: |
47 cm Bass |
| Width: |
30 cm Bass |
| Height: |
43 cm Bass |
| Shipping weight: |
18,10 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
50,00 × 52,00 × 35,00 cm |
