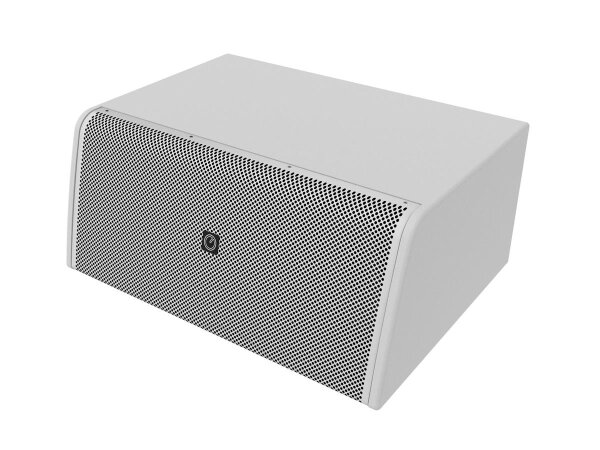

The INTUCAB 8SM300T is a dual 8" compact installation subwoofer, allowing positioning below objects or on-wall in variable directions via an included mounting rail. The dual driver design in separate chambers provides fast transient response and excellent low-frequency performance. Drivers can be wired for separate left/right amplifier channels or in parallel for a mono amplifier setup (note: a separate crossover is required). The 8SM300T is an affordable yet powerful low-end extension to the frequency response of any installed sound system.
2 x 8" low-profile installation subwoofer 2 x 150W AES, 2 x 8 ohms
- Low-profile installation subwoofer, only 270mm high
- 2 × 8" high-efficiency LF driver
- Terminal strip connections with individual access to both internal drivers, for separate/parallel wiring
- With Holder for wall mounting
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x user manual, 1 x bass, 1 x mounting material
| Power: |
Rated: 2x 150W AES
Program: 2x 300W |
| Frequency range: |
45 - 4000 Hz |
| Sensitivity: |
100 dB |
| Impedance: |
2 x 8 ohms |
| Attachment system: |
Holder for wall mounting |
| Connections: |
Screw terminal |
| Type of speaker: |
Subwoofer |
| Type of construction: |
Vented |
| Material: |
MDF (Medium-density fiberboard), 15 mm |
| Color: |
Black |
| Dimensions: |
Width: 61 cm
Depth: 45 cm
Height: 27 cm |
| Weight: |
19,10 kg |
| Shipping weight: |
21,00 kg
|
