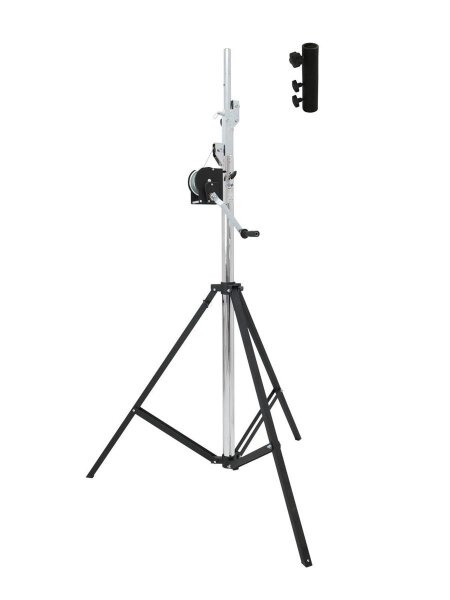

59007040 Eurolite STT-400/85 Winch Stand TÜV/GS
The Eurolite STT-series are winch-driven stands manufactured under strict TUV monitoring. These stands boast of high quality, exraordinary ruggedness, highest versatility and high stability. The production is monitored by the German TÜV SÜD which means that they comply with the highest safety standards.The GS mark signals to the buyer, customer, or consumer that the chosen product as well as the user manual and production (process) have been tested by an authorized institution such as TÜV SÜD, with priority being given to aspects of safety. In the meantime, the German GS-mark has been recognized as one of the crucial marks within product safety.
59007040 Eurolite STT-400/85 Winch Stand TÜV/GS
High-quality winch-driven stand- Made of steel
- TÜV/GS certified, certificate available
- CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available
- 1-gear winch for easy lifting of the loads
- 4 mm steel rope
- Automatic braking system
- Safety-pins for mechanic locking
- Ideal for mobile, professional lighting-systems or PA-systems
- Easy handling
59007081 Eurolite STV-3529 Adapter long
Massive adapter- For stands with 35 mm telescopic tube
- Connection element for cross beam with 28 mm spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
Shipping weight: 29.05 kg
59007040 Eurolite STT-400/85 Winch Stand TÜV/GS
Type: Winch-driven stand
Construction: DIN 15560-27, DIN EN ISO 12100-2
Certified by: CE, TÜV/GS
Sections: 3 (60/40/34 mm)
Max. load: 85 kg
Min. load: 25 kg
Max. height: 4.00 m
Min. height: 1.75 m
Material: 2 mm steel
Steel rope: 4 mm
Adapter: D = 35 mm
Base area: D = 1.60 m
Transport dimensions: 1.75 x 0.30 x 0.27 m
Weight: 25 kg
59007081 Eurolite STV-3529 Adapter long
Max. load WLL (4-fold): 100 kg
Max. load BGV C1 (8-fold): 50 kg
Receiver: D = 36.5 mm
Receiver: L = 80 mm
Adapter receiver: D = 30 mm
Adapter receiver: L = 115 mm
Strength: 6 mm
Dimensions (LxWxH): 85 x 50 x 195 mm
Weight: 1.5 kg
| Shipping weight: |
28,98 kg
|
