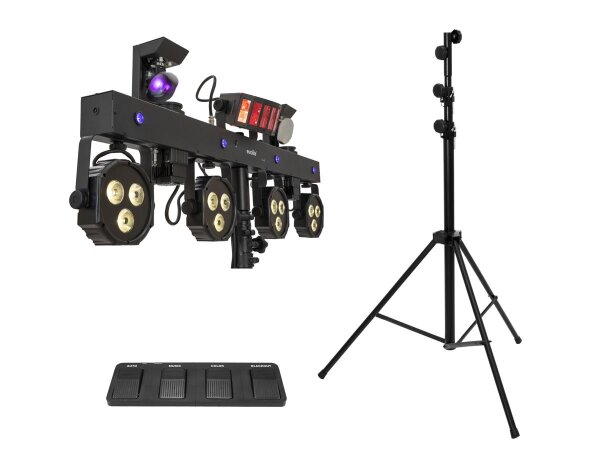

42109897 Eurolite LED KLS Scan Next FX Compact Light Set
Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
- DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
- Ultra-light ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for stand installation
- Swivel mounting brackets for truss mounting
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Sound-control via built-in microphone with sensitivity control
- Several diverse DMX modes for various consoles and requirements
- LED derby and LED spots individually tiltable and controllable
- Spots with 15° beam angle
- Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
- Brand-new software design with smart programs
- 20 built-in auto and music show programs that include all 4 effect units
- Addressing and setting via control panel with 4-digit OLED display
- Supports QuickDMX - the wireless DMX system by Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- When fog is used, this effect becomes especially attractive
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
- For application areas such as: Wedding/gala; Lender; Small lender
spotlight
- LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)
light effect
- LED: Multi beam effect each 1 x 3 W RGB
moving light
- LED: Scanner each 1 x 15 W CW
bar
- LED: 4 x high-power 1 W UV
51741093 Eurolite Foot Switch KLS Compact Light Set MK2
Wireless foot switch for KLS Compact Light Sets
- The device is cooled by passive convection
- Controlling by Wireless footswitch
- Non-slip pedal housing
59007011 Eurolite STV-60-WOT EU Steel Stand black
Lighting stand, made in EU, max. load 30 kg, height 150-315 cm
- Stable lighting stand (without T bar)
- For mobile use
- Steel/magnesium version
- Ø 29 mm attachment fits standard TV pins
- Carry bag available as accessory
- Available in black and white
- Produkt aus europäischer Produktion
| Weight: |
19.30 kg |
| 42109897 Eurolite LED KLS Scan Next FX Compact Light Set |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
115 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: |
LED lamp |
| Equipment: |
Color wheel; gobo wheel with static gobos |
| DMX channels: |
3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
Spot 15° |
| Beam angle (1/10 peak): |
Spot 28° |
| Illuminance in Lux (lx): |
R red 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
G green 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
B blue 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
WW 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx |
| Housing color: |
Black |
| Attachment system: |
TV spigot Ø 28mm |
| Display type: |
OLED display |
| Dimension: |
Width: 1.1 m
Depth: 15.5 cm
Height: 43 cm |
| Weight: |
12.80 kg |
| Spotlight |
| LED: |
Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix) |
| Light effect |
| LED: |
Multi beam effect each 1 x 3 W RGB |
| Moving light |
| LED: |
Scanner each 1 x 15 W CW |
| Bar |
| LED: |
4 x high-power 1 W UV |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese |
| Legal specifications |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| 51741093 Eurolite Foot Switch KLS Compact Light Set MK2 |
| IP classification: |
IP20 |
| Battery: |
9.0 V E block (provided) |
| Cooling: |
Passive convection |
| Control: |
Wireless footswitch |
| Housing color: |
Black |
| Housing design: |
Non-slip pedal housing |
| Weight: |
840 g |
| 59007011 Eurolite STV-60-WOT EU Steel Stand black |
| Maximum carrying capacity: |
30 kg |
| Height: |
Maximum: 3.15 m
Minimum: 1.5 m |
| Attachment system: |
TV spigot Ø 28mm |
| Type (general stands): |
Light stand/manual |
| Material: |
Steel/magnesium |
| Color: |
Black |
| Transport dimensions: |
126 cm x 12 cm x 15 cm |
| Weight: |
5.65 kg |
| Shipping weight: |
20,88 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
135,00 × 120,00 × 80,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
