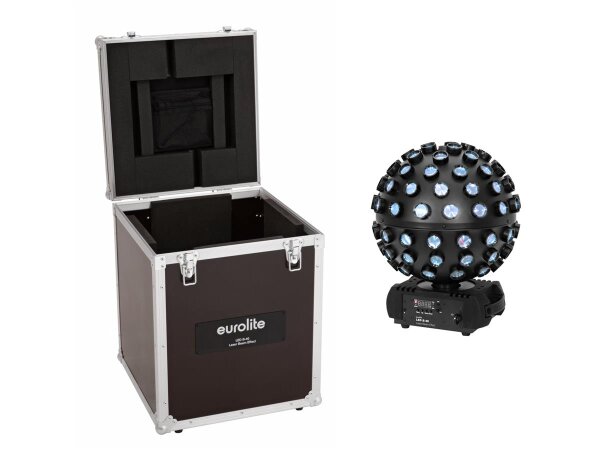

51741087 Eurolite LED B-40 Laser Beam Effect
LED beam effect with RGBW color mixing and RG laser
- 5 high-power 8 W RGBW LEDs (4in1) for dynamic mirror ball effects
- 2 laser diodes project thousands of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- 7 built-in auto and music show programs
- Stepless RGBW color blend, dimmer and strobe effects
- Rotation speed variably adjustable
- LEDs are distributed in 3 groups which can be controlled individually via DMX
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control Eurolite IR-16
- Supports QuickDMX - the wireless DMX system by Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Hanging or standing installation possible
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 5 x high-power 8 W 4in1 QCL RGBW
- Can be operated in 3; 10; 22 CH mode
- The device is cooled by cooling fan at the Base; cooling fan at the Head
- Controlling by Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function
- Is in Light J Software; Eurolite LED PC-Control 512 software; EASY SHOW already preprogrammed
- Effect: Laser; multi beam effect
31005193 Roadinger Flightcase 1x B-40 HCL/Laser
| Weight: |
11.45 kg |
| 51741087 Eurolite LED B-40 Laser Beam Effect |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
65 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Fuse: |
5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
5 x high-power 8 W 4in1 QCL RGBW |
| Flash rate: |
0 - 20 Hz |
| Laser class: |
Class 2M |
| Laser color: |
RG |
| Laser module: |
G green 40 mW 532nm
R red 100 mW 650nm |
| DMX channels: |
3; 10; 22 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan at the Base
Cooling fan at the Head |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function; Light J Software; Eurolite LED PC-Control 512 software; EASY SHOW |
| Housing color: |
Black |
| Display type: |
Monochrome 4 digits 7-segment LED display |
| Dimension: |
Width: 31 cm
Depth: 31 cm
Height: 39 cm |
| Weight: |
4.20 kg |
| Noise classification: |
Class 2 (slight noise) |
| 31005193 Roadinger Flightcase 1x B-40 HCL/Laser |
| Maximum load: |
25 kg |
| Device compartment: |
32.5 cm x 32.5 cm x 39 cm |
| Material thickness: |
6.5 mm |
| Weight: |
7.20 kg |
| Shipping weight: |
13,85 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
52,00 × 82,00 × 41,00 cm |
