Eurolite AKKU IP TL-3 QCL Trusslight CRMX
Weather-proof battery LED spot (IP65) ideal as trusslight or uplight with bright 3x10W RGBW LED
- Silent operation
- Control via stand-alone; Master/slave function; IR remote control; DMX; CRMX by LumenRadio; W-DMX by wireless solution; RDM
- Integrated wireless receiver for CRMX operation
- 3 buttons on the remote control for saving your own settings
- Compact and bright
- 3 powerful LEDs 10 W 4in1 QCL RGBW (homogenous color mix)
- Additional frost filter provides a wide, soft and homogeneous light
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) with adjustable response; white balance; Energy-saving mode
- Uplight effect
- 36 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Flicker-free
- With a beam angle of 8°
- OLED display
- Display of the remaining battery life for the current setting
- Charge status indicator
- Battery operation up to 10h depending on program used
- Suitable for outdoor use IP65
- With pressure compensation membrane
- Cordless, flexible and versatile
- For application areas such as: Wedding/gala/events; mobile use; Stage; mobile djs / entertainer
- Application possibility: Standing; suspended
- Threaded inserts for suspended installation
- Rubber feet
Package contents
- 1 x device, 1 x user manual, 1 x external mains adapter, 1 x diffusor cover, 3 x knurled screw, 1 x remote control, 1 x battery

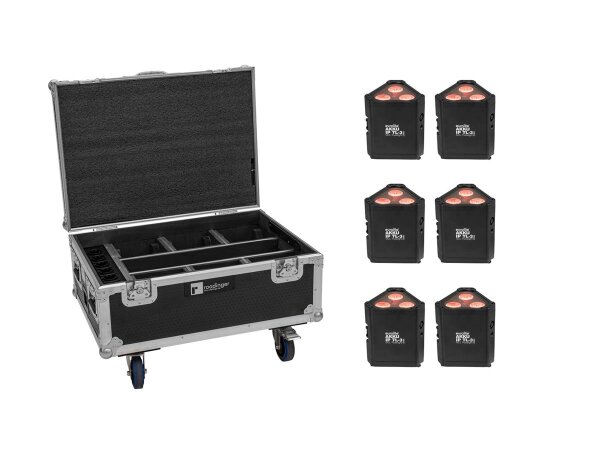

Roadinger Flightcase 6x AKKU IP TL-3 QCL Trusslight CRMX with charging function and wheels
Trunk case with castors
- With 1 accessory compartment
- With 6 Device compartments
- High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
- Interior with foam padding
cover with foam padding
- Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- Edge mounting handle
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 castors with 2 locking brakes
Package contents
- 1 x case, 1 x power cord, 1 x user manual, 4 x screw
| Weight: |
35,72 kg |
| Eurolite AKKU IP TL-3 QCL Trusslight CRMX |
| Power supply: |
100-240 V AC, 50/60 Hz
16,8 V 3,15 A |
| IP classification: |
IP65 |
| Protection class: |
Protection class III |
| Power connection: |
Mains input via Coaxial power connector (M) mounting version power supply cord with Euro plug (provided)
Battery/battery pack |
| Cable length: |
1,5 m detachable |
| Battery pack type: |
1 x lithium ion 14,8 V, 5200 mAh, 76,96 Wh |
| Battery pack: |
Battery operation up to 10h depending on program used
Recharging time 3,5h |
| Lamp type: |
LED lamp |
| LED: |
3 x 10 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
1 - 23 Hz |
| DMX channels: |
3; 4; 6; 8; 11 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; Master/slave function; IR remote control; DMX; CRMX by LumenRadio; W-DMX by wireless solution; RDM |
| Projection: |
Flicker-free |
| Carrier frequency: |
2,4 GHz |
| Beam angle: |
8° |
| Beam angle (1/2 peak): |
8°
Frost filter 20° |
| Beam angle (1/10 peak): |
16°
Frost filter 40° |
| Housing color: |
Black |
| Attachment system: |
2x M10 thread |
| Display type: |
OLED display |
| Display: |
Battery runtime calculation , charge status indicator |
| Transport aid: |
Rubber feet |
| Dimensions: |
Length: 13 cm
Depth: 11,5 cm
Height: 15,3 cm |
| Weight: |
2,24 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger Flightcase 6x AKKU IP TL-3 QCL Trusslight CRMX with charging function and wheels |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable length: |
1,2 m |
| Device fuse: |
5 x 20 mm, F 5 A Fuse replaceable |
| Aluminum profile frames: |
30 mm |
| Case handle: |
4 pc/pcs |
| Edge mounting handle: |
1 pc/pcs |
| Stop hinge: |
2 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Transport aid: |
4 x castors with 2 locking brakes |
| Material: |
Plywood multi-layer glued, 9 mm |
| Color: |
Black, laminated |
| Device compartment: |
16 cm x 15 cm x 21 cm |
| Inside dimensions: |
66,5 cm x 46 cm x 21 cm |
| Accessory compartment: |
55 cm x 11 cm x 16 cm |
| Dimensions: |
Length: 72,00 cm
Depth: 52,00 cm
Height: 48,30 cm |
| Weight: |
20,85 kg |
| Shipping weight: |
35,72 kg
|
