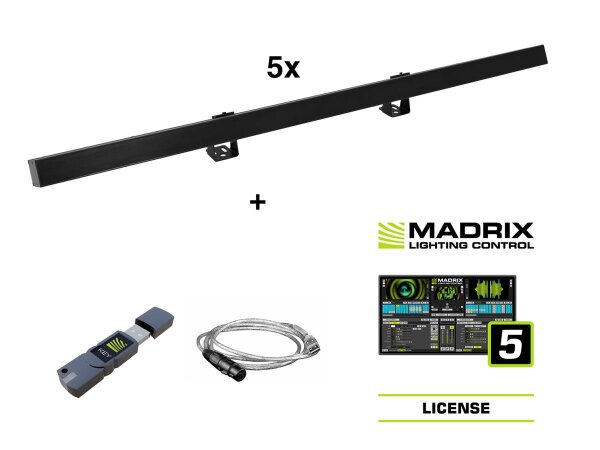

Eurolite LED PR-100/32 Pixel DMX rail bk
DMX controlled pixel tube with RGB color mixing
- Tube with 96 high power RGB LEDs (3in1) for light effects
- Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
- Auto, music, master/slave and DMX mode
- Static colors, automatic color change, internal programs with variable speed, dimmer settings
- 12 built-in auto and music show programs
- Direct color selection for 17 preset colors
- 3, 5, 8, 48 or 96 DMX channels selectable
- DMX and power terminals intelligently designed for easy wiring
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Addressing and setting via control panel with 4-digit LED display
- Metal housing with brackets for hanging as well as standing installation indoors
- Front cover: black
- Swivel mounting bracket
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Can be operated in 3; 5; 8; 48; 96 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; Sound to light via Microphone
Madrix Software 5 License start
Madrix 5 licence start
- Includes 1x Madrix 5 License start
- Requires a valid, empty, and metallic Madrix KEY
- Madrix 5 is a powerful, easy-to-use, and award-winning LED lighting control software
- Allows you to realize all kinds of different LED projects and lighting designs
- A normal PC/laptop can be used for professional LED control
- Activates output for up to 2x 512 DMX channels (1,024 DMX channels, or 2 DMX universes, for example) and up to 4,096 DVI voxels (a resolution of 64 x 64 pixels, for example)
- The license is activated via a USB dongle and can be used flexibly on different computers as needed
- Can be upgraded to higher licenses (up to Madrix 5 License maximum)
- Online activation is initially required one time
- Only one Madrix 5 License is possible per Madrix KEY
- Only one Madrix 5 KEY can be connected to the software
- Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers: Art-Net (I, II, 3, 4) (Unicast & Broadcast), DMX512, Philips Color Kinetics KiNET (V1 / V2), Philips Hue, SPI (via Madrix NEBULA), Streaming ACN (sACN / E1.31) (Unicast & Multicast), ColourSmart Link, Colorlight A8, Colorlight 5A, Colorlight T9, DVI (VGA, HDMI, and more), Eurolite T9
- Even more options are available via converters or bridging tools
- Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
- The software generates unique effects, visuals, and animations live and in real time
- No additional content is required
- Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, and many more)
- Analyzes incoming audio signals for Sound2Light and Music2Light in real time (WDM or ASIO)
- TRI effect category for interactive performances
- New lighting scenes can easily be created in seconds
- Supports media server features also: Conveniently load and play back images, pictures, logos, and videos as well as live video signal capturing, screen capturing, scrolling text (ticker), and more
- Supports audio playback for videos
- Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
- Clean and simple user interface with 2 themes (dark and light)
- DJ-/VJ-like operation with 2 decks (A/B) and a crossfader
- 256 x 256 Storage Places to organize and store effects
- 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
- 2 DVI outputs
- Controls up to 4 color channels per pixel/voxel (1-channel, 2-channel, RGB, RGBW fixtures, for example)
- Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
- Supports Time Code (Art-Net, MIDI, SMPTE, and System Time)
- Input, interoperability, and remote control available through industry standards: Art-Net (I, II, 3, 4), Blackmagic Design (DeckLink, Intensity, and more), CITP, DMX512, GamePort, MA-Net 1 / MA-Net 2, Madrix I/O, MIDI, NewTek NDI (Send & Receive), Remote HTTP (Web Server), Spout (Send & Receive), Streaming ACN (sACN / E1.31)
- Even more options are available via converters or bridging tools
- Accompanying Fixture Editor including large fixture library
- Comfortable patching features (incl. Matrix Generator, graphical Patch Editor with background image support, DVI Patch, CSV Fixture List Import, Fixture List Export, and more)
- Includes various other tools and features (Art-Net Time Code Sender, DMX Fader Tool, DMX Watcher, MIDI Watcher, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
- Supports various 3rd-party interfaces via aforementioned standards as well as Madrix hardware interfaces (sold separately)
- Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system specifications will often be higher)
- Supported operating systems: Microsoft Windows 7 8 8.1 10 (64 bit only)
- Software and installation instructions available in English, German, Spanish, French, and Simplified Chinese
- All user manuals are provided digitally and available in English
- User manuals also available at help.madrix.com
- Hergestellt in Deutschland
- Free software demo mode and more information available at www.madrix.com
- Hergestellt in Deutschland
Madrix USB ONE DMX512 USB interface
USB-DMX cable to send/receive DMX signals with Madrix software
- Madrix USB ONE is a reliable and high-quality DMX512 USB hardware interface for transmitting and receiving DMX data
- DMX512 devices are connected via a 5-pin, female Neutrik XLR plug
- To receive DMX512 signals, please use a 5-pin XLR male to 5-pin XLR male gender changer
- The Madrix Software license is not included: An additional Madrix KEY (i.e. a software license) is required for DMX output
- Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
- Multiple devices can be used together without problems
- Madrix 5 minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free hard disk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
- Madrix 5 supported operating systems: Microsoft Windows 7 8 8.1 10 (64 bit only)
- Installation instructions and software available in English, German, Spanish, French, and Simplified Chinese
- All user manuals are provided digitally and available in English
- User manuals also available at help.madrix.com
- Hergestellt in Deutschland
- Free software demo mode and more information available at www.madrix.com
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by DMX
- The device can be connected via USB to the PC in connection with Madrix software
- Hergestellt in Deutschland
Madrix KEY
Madrix 5 KEY - without license
- Includes an empty Madrix KEY
- Requires a proper Madrix 5 License to activate the features or output for the Madrix 5 Software
- Package contents: Beautiful, high-quality box including 1x Madrix KEY, 1x USB flash drive incl. Madrix 5 Software, 1x lanyard, and 1x quick start guide
- The device can be connected via USB to the PC
- Hergestellt in Deutschland
| Weight: |
13,14 kg |
| Eurolite LED PR-100/32 Pixel DMX rail bk |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
30 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x P-Con (gray), mounting version |
| Lamp type: |
LED lamp |
| LED: |
96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 5; 8; 48; 96 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Sound to light via Microphone |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Housing color: |
Black |
| Display type: |
4 digits 7-segment LED display |
| Dimensions: |
Length: 99,9 cm
Width: 5,95 cm
Height: 13,2 cm |
| Weight: |
2,01 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| intended use: |
show effect lighting |
| Madrix Software 5 License start |
| Weight: |
0 g |
| Madrix USB ONE DMX512 USB interface |
| Power supply: |
5 V DC 500 mA |
| Power connection: |
Fixed Power supply cord for USB A mains connection |
| DMX channels: |
Input 512
Output 512 |
| DMX output: |
1 x 5-pin XLR (F) |
| Control: |
DMX |
| USB port: |
USB 2.0, Typ A |
| PC connect: |
Madrix software via USB |
| Weight: |
100 g |
| Madrix KEY |
| Power connection: |
Mains input USB A (M) connectable version |
| USB port: |
Typ A |
| PC connect: |
Via USB |
| Weight: |
70 g |
| Shipping weight: |
13,14 kg
|
