51914111 Eurolite LED IP T-PIX 12 HCL Bar
Weatherproof (IP65) bar with RGBAW+UV color mixing and pixel control
- 12 high-power 10 W RGBAW+UV LEDs (6in1)
- Each LED can be controlled via DMX individually or in segments with 2 or 3 LEDs each
- Suitable for external use (IP65)
- Built-in auto show programs
- Direct color selection for 45 preset colors
- Stepless RGBAW+UV color blend, color change with programmable speed, dimmer and strobe effect
- Different dimmer curves selectable
- Addressing via control panel with LCD and four operating buttons
- Swivel mounting bracket
- Hanging installation via quick-lock Omega holder (included in delivery)
- DMX and power terminals intelligently designed for easy wiring
- Switch-mode power supply for operation between 100 and 240 volts
- Feed-through output allows to power up to 8 devices
- Power connection via IP T-Con jack and included power cable with safety plug
- DMX512 control possible via any commercial DMX controller
- LED: 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 6; 11; 24; 41; 77 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; Master/slave function; Sound to light via Microphone
- Is in Eurolite LED PC-Control 512 software; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE already preprogrammed
- Flicker-free projection
- Suitable for outdoor use

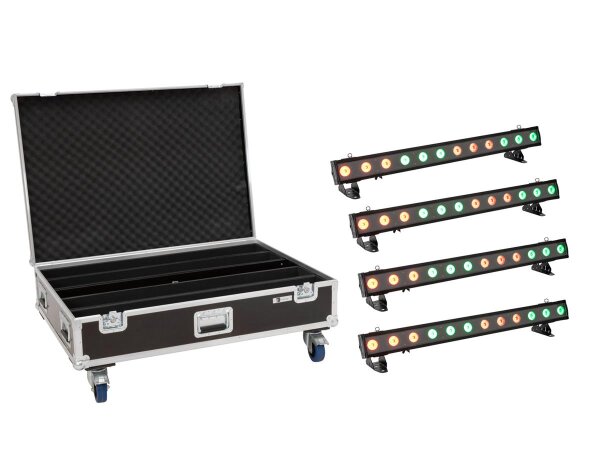

31005191 Roadinger Flightcase 4x LED IP T-PIX 8 QCL/T-PIX 12 HCL with wheels
- Transport aid: With wheels
- European engineering
| Weight: |
64.00 kg |
| 51914111 Eurolite LED IP T-PIX 12 HCL Bar |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
125 W |
| IP classification: |
IP65 |
| Protection class: |
Class I |
| Power connection: |
Mains input IP T-Con (M) mounting version Power supply cord with safety plug |
| Power output: |
1 x IP T-Con (F) mounting version |
| Lamp type: |
LED lamp |
| LED: |
12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: |
1 - 25 Hz |
| DMX channels: |
6; 11; 24; 41; 77 |
| DMX input: |
1 x 3-pin XLR (M) mounting version IP |
| DMX output: |
1 x 3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Eurolite LED PC-Control 512 software; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: |
25° |
| Beam angle (1/2 peak): |
25° |
| Beam angle (1/10 peak): |
50° |
| Housing color: |
Black |
| Display type: |
LCD display |
| Dimensions: |
Length: 99 cm
Depth: 16 cm
Height: 14 cm |
| Weight: |
8.30 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Legal specifications |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| 31005191 Roadinger Flightcase 4x LED IP T-PIX 8 QCL/T-PIX 12 HCL with wheels |
| Maximum load: |
100 kg |
| Weight: |
24.80 kg |
| Shipping weight: |
61,60 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
80,00 × 120,00 × 80,00 cm |
