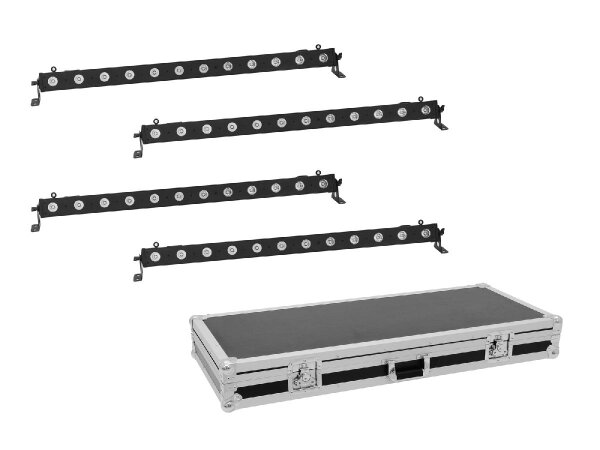

51930396 Eurolite LED BAR-12 QCL RGBA Bar
Spotlight bar (110 cm) with 12 x 4 watt 4in1 LED (RGBA)
- Operable in stand-alone mode or via DMX
- DMX512 control possible via any commercial DMX controller (occupies max. 9 channels)
- 2, 4, 5, 6, or 9 DMX channels selectable
- Sound-control via built-in microphone
- Microphone sensitivity adjustable via Control Board
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Comfortable addressing and setting via control board with LED display and four operating buttons
- Functions: Static colors, RGBA color blend, color temperature settings, internal programs, dimmer and strobe settings, Master/Slave
- Equipped with 12 x 4 W QCL LED in the colors red, green, blue and amber
- Hanging as well as standing installation possible
- Locking possibility at the mounting bracket
- Feed-through output allows to power up to 8 devices
- Switch-mode power supply for operation between 100 and 240 volts
- Ready for connection via enclosed IEC power cord with safety-plug
- Case color: Black
- Effect: Strobe effect
- Projection: flicker-free
- Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
- Power out: 1 x IEC connector (F) mounting version
- Control: Stand-alone; DMX
- LED: 12 x high-power 4 W 4in1 QCL RGBA (homogenous color mix)
31005055 Roadinger Flightcase EC-B252 4x LED BAR-252 RGB
Practical flightcase for 4 x LED BAR-252 RGB
- High-quality workmanship with multiplex birch wood, dark brown laminated
- Suitable for 51930302 Eurolite LED BAR-252 UV 10mm 15° incl IR, 51930303 Eurolite LED BAR-27 UV 27x1W 25° incl. IR, 51930418 Eurolite LED BAR-252 RGBA 10mm 20°, 51930419 Eurolite LED BAR-252 RGBA 10mm 40°, 51930420 Eurolite LED BAR-252 RGB 10mm 20° black, 51930421 Eurolite LED BAR-252 RGB 10mm 20° white, 51930422 Eurolite LED BAR-252 RGB 10mm 40° black, 51930423 Eurolite LED BAR-252 RGB 10mm 40° white, 51930443 Eurolite LED BAR-252 RGBA 10mm 20° white, 51930444 Eurolite LED BAR-252 RGBA 10mm 40° white
- Aluminum profile frames (30 mm) with rounded edges
- Interior upholstered with foam
- Three-leg, small-sized steel ball corners
- 2 hinges
- 2 high-quality butterfly locks
- Rugged carrying handle
| 51930396 Eurolite LED BAR-12 QCL RGBA Bar |
| Power supply: |
100-240 V AC, 50/60 Hz |
| DMX channels: |
2/4/5/6/9 |
| DMX connection: |
3-pin XLR |
| Sound-control: |
via built-in microphone |
| QuickDMX connection: |
USB, type A |
| Flashrate: |
20 Hz |
| Type of LED: |
4 W QCL (RGBA) |
| LED number: |
12 |
| Beam angle: |
17° |
| Dimensions (L x W x H): |
1085 x 65 x 100 mm |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| IP classification: |
IP20 |
| Beam angle: |
17° |
| Cooling fan: |
No, cooling by convection |
| Weight: |
2,90 kg |
| Lamp type: |
LED lamp |
| Power consumption: |
24 W |
| Height: |
10 cm |
| Depth: |
6,5 cm |
| Length: |
109 cm |
| Power connection: |
Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) |
| DMX channels: |
2; 4; 5; 6; 9 |
| LED: |
12 x high-power 4 W 4in1 QCL RGBA (homogenous color mix) |
| Power supply: |
110-240 V AC, 50/60 Hz |
| 31005055 Roadinger Flightcase EC-B252 4x LED BAR-252 RGB |
| Strength: |
7 mm |
| Outside dimensions (W x D x H): |
1170 x 480 x 170 mm |
| Inside dimensions (W x D x H): |
1080 x 440 x 115 mm |
| Weight: |
10,90 kg |
| Color: |
Black laminated |
| Maximum load: |
25 kg |
| Width: |
117 cm |
| Depth: |
48 cm |
| Height: |
17 cm |
| Material: |
Birch multiplex 7 mm |
| Shipping weight: |
25,50 kg
|
