41700542 Eurolite AKKU IP UP-4 QCL Spot QuickDMX
Weatherproof (IP65), Uplight with 4 x 10 W 4in1 LED, QuickDMX & diffusor disk
- Compact and bright
- 4 high-power 10 W RGBW LEDs (4in1)
- Suitable for external use (IP65)
- Additional milky diffuser provides a homogeneous and soft light
- With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
- Operation via mains connection or built-in rechargeable lithium-ion battery with up to 16 hours operating time
- Wireless master/slave operation via QuickDMX
- Integrated automatic charging of the battery with indicator
- Controllable via Eurolite IR-13 remote control; included in the delivery
- DMX-controlled operation or stand-alone operation with Master/Slave function
- 3, 4, 6, 8 or 10 DMX channels selectable
- Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
- Dimmer speed (step response) adjustable
- With integrated folding foot for angled placement by floor installation
- Hanging as well as standing installation possible
- Addressing and setting via Control Board with touch buttons and LCD
- Kensington Security Slot to secure the device against theft
- Switch-mode power supply for operation between 100 and 240 volts
- Power connection via IP P-Con jack and included power cable with safety plug
- Case color: Black
- Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in
- Projection: flicker-free
- Power connection: Battery/battery pack; Mains Input Socket (M) IP P-Con (Power in) yellow mounting version Power supply cord with safety plug (M) (provided)
- Control: Master/slave function; IR remote control (provided); Stand-alone; DMX; QuickDMX
- LED: 4 x high-power 10 W 4in1 QCL RGBW (homogenous color mix)

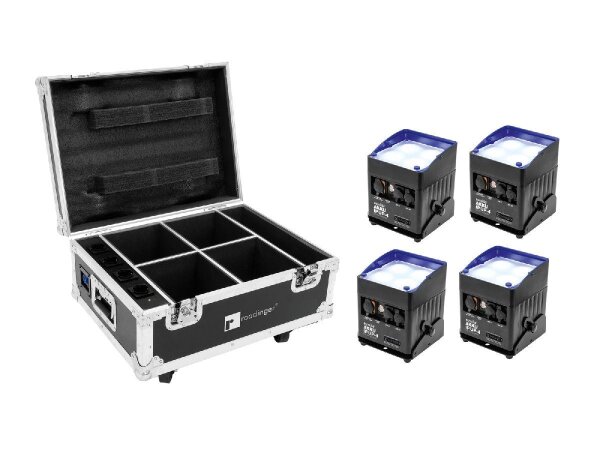

31005127 Roadinger Flightcase 4x AKKU IP UP-4 QuickDMX with charging function
PRO flightcase for 4 AKKU IP UP-4 QCL Spot QuickDMX, with charging function
- Suitable for four Eurolite AKKU IP UP-4 QCL Spot QuickDMX (No. 41700542)
- Charges up to four spots
- Interior and cover upholstered with foam
- High-quality workmanship with multiplex birch wood, black laminated
- Aluminum profile frames with rounded edges
- Three-leg steel ball corners
- Additional accessory compartment
- 2 tip-over locks
- 4 castors, 2 of which with locking brakes
- 2 chrome butterfly locks
- 2 chrome case handles
- 4 stacking dishes for stacking the cases
- Power connection via P-Con jack and included power cable
- Transport aid: With wheels
- Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
| 41700542 Eurolite AKKU IP UP-4 QCL Spot QuickDMX |
| Power supply: |
100-240 V AC, 50/60 Hz for mains operation |
| Protection grade: |
IP65 |
| Battery pack type: |
Li-ion 14.8 V, 7800 mAh (115.44 Wh) |
| Battery operation: |
depending on program used up to 16 hours |
| Recharging time: |
3 hours |
| Battery remote control: |
CR2032 button cell 3 V |
| DMX channels: |
3/4/6/8/10 |
| DMX connection: |
3-pin XLR |
| Sound-control: |
via built-in microphone |
| Wireless signal transmission: |
2.4 GHz (ISM), 78 channels |
| LED type: |
10 W RGBW (4in1) |
| LED number: |
4 |
| Beam angle: |
7° |
| Dimensions (L x W x H): |
180 x 150 x 198 mm |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| IP classification: |
IP65 |
| Lamp type: |
LED lamp |
| Weight: |
4,44 kg |
| Cooling fan: |
No, cooling by convection |
| Beam angle: |
7° |
| Height: |
19,8 cm |
| Battery: |
1 x Button cell 3.0 V CR2032 lithium manganese |
| Accumulator: |
battery operation up to 16h depending on program used
recharging time 3h |
| Battery pack type: |
1 x Lithium ion 14,8 V, 7800 mAh, 115,44 Wh |
| Depth: |
18 cm |
| Width: |
15 cm |
| DMX channels: |
3; 4; 6; 8; 10 |
| Power connection: |
Battery/battery pack |
|
Mains Input Socket (M) IP P-Con (Power in) yellow mounting version Power supply cord with safety plug (M) |
| LED: |
4 x high-power 10 W 4in1 QCL RGBW (homogenous color mix) |
| Power supply: |
110-240 V AC, 50/60 Hz |
| 31005127 Roadinger Flightcase 4x AKKU IP UP-4 QuickDMX with charging function |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Strength: |
9 mm |
| Outside dimensions (W x D x H): |
600 x 470 x 375 mm |
| Inside dimensions (W x D x H): |
560 x 430 x 200 mm |
| Compartment dimensions (W x D x H): |
180 x 155 x 140 mm |
| Accessory compartment (W x D x H): |
70 x 430 x 140 mm |
| Weight: |
15,05 kg |
| Width: |
60 cm |
| Color: |
Black laminated |
| Power connection: |
Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) |
| Depth: |
47 cm |
| Height: |
37,5 cm |
| Material: |
Birch multiplex 9 mm |
| Shipping weight: |
34,34 kg
|
