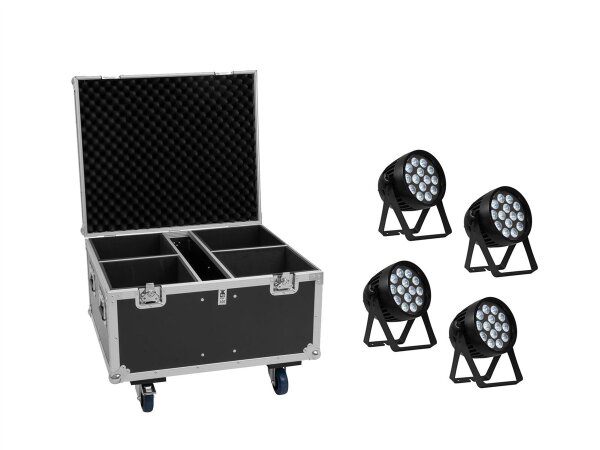

Eurolite AKKU IP PAR 14 HCL QuickDMX
IP65 battery-powered spotlight with RGBWA+UV LEDs, QuickDMX, frost filter and IR remote control
- Integrated QuickDMX transceiver for wireless DMX control
- Battery operation up to 26h depending on program used
- 14 powerful LEDs 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Frost filter
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable
- Strobe effect
- Integrated show programs
- Direct color selection for 27 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; IR remote control; master/slave function; QuickDMX
- Preprogrammed in LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
- Flicker-free
- With a beam angle of 15°
- Variable color temperature 2700 K - 8000 K
- With double bracket
- LCD display
- Mains input and output for power linking up to 8 units
- Suitable for outdoor use
- For application areas such as: Architecture; stage; wedding/gala/events; rental; video and photography
- Silent operation
- Application possibility: Standing; suspended; on stand
battery pack
- Cordless, flexible and versatile
Roadinger UG-1 Universal Devicecase
Trunk case with castors
- With 4 device compartments
- Steel ball corner
- High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
- Interior with foam padding
cover with foam padding
- Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 x castors with 2 locking brakes
Scope of delivery
4 x Eurolite AKKU IP PAR 14 HCL QuickDMX
- 1 x spotlight
- 1 x power cord
- 1 x XLR cable
- 3 x frost filter
- 1 x remote control
- 2 x screw
- 1 x user manual
1 x Roadinger UG-1 Universal Devicecase
| Weight: |
66.55 kg |
| Eurolite AKKU IP PAR 14 HCL QuickDMX |
| Power supply: |
100-240 V AC, 50/60 Hz |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Battery/battery pack built-in
Via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
IP T-Con (F) mounting version |
| Fuse: |
5 x 20 mm, T 3 A fuse serviceable |
| Battery pack: |
Battery operation up to 26h depending on program used
Recharging time 3h |
| LED type: |
14 x 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| Equipment: |
Frost filter |
| DMX channels: |
2; 3; 6-1; 6-2; 12 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; stand-alone; IR remote control; master/slave function; QuickDMX |
| Preprogrammed in: |
LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief |
| Projection: |
Flicker-free |
| Carrier frequency: |
2.4 GHz |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
15°
27°
30°
60° |
| Color temperature: |
2700K - 8000K adjustable |
| Housing color: |
Black |
| Attachment system: |
Double bracket |
| Display type: |
LCD display |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 31.7 cm
Depth: 22.7 cm
Height: 37.0 cm |
| Weight: |
7.85 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Battery pack |
| Battery pack type: |
1 x lithium ion 22.2 V, 4400 mAh, 97.68 Wh |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø11mm |
| Material: |
Metal, 3 mm |
| Power cord |
| Cable construction: |
3 x 1.0 mm² H05RN-F |
| Cable length: |
Approx. 1.2 m |
| XLR cable |
| Cable length: |
Approx. 1.5 m |
| Plug A: |
1 x 3-pin XLR (M) |
| Plug B: |
1 x 3-pin XLR (F) |
| Frost filter |
| Diameter mounting holes: |
2 x Ø4mm |
| Material: |
Plastic, 2 mm |
| Dimensions: |
Diameter: Ø 20.5 cm |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger UG-1 Universal Devicecase |
| Maximum load: |
100 kg |
| Aluminum profile frames: |
30 mm |
| Case handle: |
4 pc/pcs |
| Stop hinge: |
2 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Transport aid: |
4 x castors with 2 locking brakes |
| Material: |
Plywood multi-layer glued, 9 mm |
| Color: |
Black, laminated |
| Device compartment: |
27.5 cm x 27.5 cm x 29 cm |
| Accessory compartment: |
10 cm x 60 cm x 31.5 cm |
| Dimensions: |
Width: 75 cm
Depth: 64.5 cm
Height: 57 cm |
| Weight: |
28.30 kg |
| Shipping weight: |
70,00 kg
|
