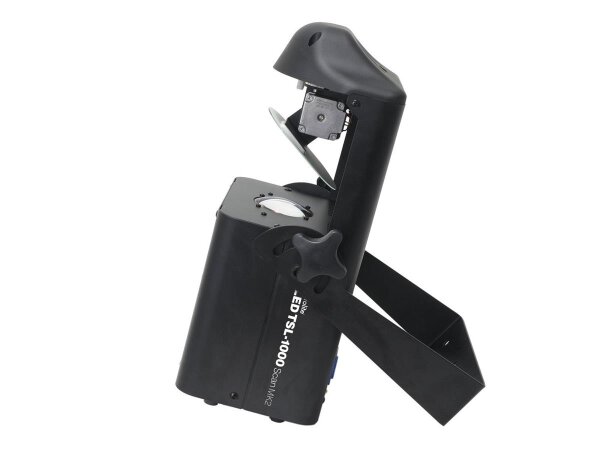

Eurolite LED TSL-1000 Scan MK2
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus
- One high-power 100 W COB LED in cold white
- Positioning within 160° PAN and 50° TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Auto, music, master/slave and DMX mode
- Built-in auto and music show programs
- 10 or 15 DMX channels selectable
- Color wheel with 8 dichroic colors plus open
- Rainbow effect with adjustable speed in both directions
- Gobo wheel with 7 rotating gobos plus open
- Gobo shake function
- 3-facet prism
- Strobe effect with adjustable speed
- Sound-control via built-in microphone; sensitivity adjustable
- Motorized focus
- Electronic dimmer
- Lightbeam with 20° radiation angle
- Addressing and setting via control board with OLED display and four operating buttons
- Switch-mode power supply for operation between 100 and 240 volts
- P-Con terminals for power linking up to 8 units
- Additional rubber feet
- Note: The Macro programs of the predecessor model (article number 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
- LED: 1 x COB (chip-on-board) 100 W cold white (CW)
- Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
- Gobo wheel with rotating gobos, 7 gobos and open
shake effect
- Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 10; 15 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
- Preprogrammed in Light´J
- Flicker-free projection
- Effect: Gobo effect
Roadinger Flightcase 2x LED TSL-1000 with trolley function
- High-quality workmanship with birch multiplex 6,5 mm,
- With castors
- Produkt aus europäischer Produktion
| Weight: |
23,40 kg |
| Eurolite LED TSL-1000 Scan MK2 |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
110 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
T 2 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
1 x COB (chip-on-board) 100 W cold white (CW) |
| Color temperature: |
8000K |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 50° |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 160° |
| Flash rate: |
1 - 25 Hz |
| Equipment: |
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold |
| Color generation: |
Color wheel 8 dichroic filters plus open |
| Gobos: |
Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: |
10; 15 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light´J |
| Beam angle: |
20° |
| Beam angle (1/2 peak): |
20° |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx |
| Housing color: |
Black |
| Display type: |
OLED display |
| Dimensions: |
Width: 25,1 cm
Depth: 14,1 cm
Height: 37,7 cm |
| Weight: |
5,75 kg |
| Noise classification: |
Class 2 (slight noise) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger Flightcase 2x LED TSL-1000 with trolley function |
| Maximum load: |
25 kg |
| Transport aid: |
Castors |
| Material: |
Birch multiplex, 6,5 mm |
| Accessory compartment: |
44 cm x 7 cm x 13 cm |
| Device compartment: |
36 cm x 25,5 cm x 13 cm |
| Inside dimensions: |
86,5 cm x 32,5 cm x 13 cm |
| Weight: |
10,10 kg |
| Shipping weight: |
23,40 kg
|
