51785915 Eurolite LED TMH-X4 Moving Head Wash Zoom
Washlight with 19 intense 15 W LEDs (4in1) and motorized zoom
- 19 high-power 15 W RGBW LEDs (4in1)
- 16 or 24 DMX channels selectable
- Three different LED segments, which can be controlled individually via DMX
- Positioning within 540° PAN and 270° TILT
- Stepless RGBW color mixture, preset colors, color change and color fade
- Built-in auto and music show programs
- Strobe effect with variable speed
- Strobe effect by random generator
- Dimmer
- Motorized zoom with 1-25° beam angle
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- Fan-cooled
- Auto, music, master/slave and DMX mode
- Control board with color LCD for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
- Control: Stand-alone; QuickDMX via USB (optional); DMX
- Projection: flicker-free

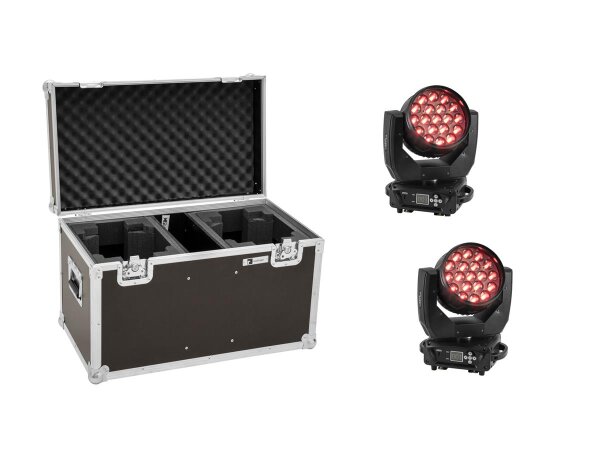

31005174 Roadinger Flightcase 2x LED TMH-X4
PRO flightcase for 2x LED TMH-X4
- Fitted for two devices
- Additional accessory compartment
- Compartments upholstered with foam
- High-quality workmanship with birch multiplex, dark brown laminated
- Aluminum profile frames with rounded edges
- Three-leg steel ball corners
- 2 tip-over locks
- 2 chrome butterfly locks
- 2 chrome case handles
- Trademark hardware
- Transport aid: With wheels
| Weight: |
28,60 kg |
| 51785915 Eurolite LED TMH-X4 Moving Head Wash Zoom |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
225 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm T time-lag, 2 A Fuse replaceable |
| LED: |
19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 630° Auto position correction (feedback) |
| Equipment: |
Zoom motor-driven |
| DMX channels: |
16; 24 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling fan: |
Yes, temperature-controlled Head |
|
Yes Base |
| Control: |
Stand-alone |
|
QuickDMX via USB (optional) |
|
DMX |
| Beam angle (1/2 peak): |
1 - 25° |
| Beam angle (1/10 peak): |
8 - 40° |
| Illuminance in Lux (lx): |
Narrow R red 3m: 2779 lx, 6m: 763 lx |
|
Narrow G green 3m: 7893 lx, 6m: 1841 lx |
|
Narrow B blue 3m: 1468 lx, 6m: 390 lx |
|
Narrow CW 3m: 9558 lx, 6m: 2468 lx |
|
Narrow all 3m: 19553 lx, 6m: 5001 lx |
|
Wide R red 3m: 272 lx, 6m: 73 lx |
|
Wide G green 3m: 583 lx, 6m: 160 lx |
|
Wide B blue 3m: 117 lx, 6m: 34 lx |
|
Wide CW 3m: 740 lx, 6m: 211 lx |
|
Wide all 3m: 1568 lx, 6m: 439 lx |
| Housing color: |
Black |
| Width: |
30,5 cm |
| Height: |
40,0 cm |
| Depth: |
20,0 cm |
| Weight: |
8,20 kg |
| Legal specifications |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| 31005174 Roadinger Flightcase 2x LED TMH-X4 |
| Maximum load: |
50 kg |
| Color: |
Black laminated |
| Material: |
Birch multiplex 7 mm |
| Width: |
72 cm |
| Height: |
41 cm |
| Depth: |
46 cm |
| Weight: |
12,20 kg |
| Shipping weight: |
30,30 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
120,00 × 60,00 × 60,00 cm |
