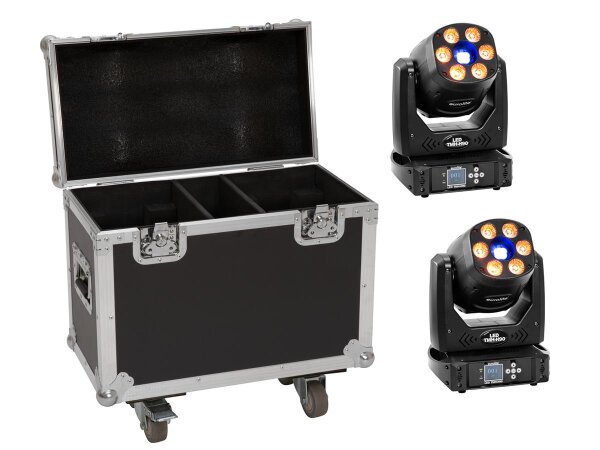

Eurolite LED TMH-H90 Hybrid Moving-Head Spot/Wash COB
LED Moving Head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus
- Bright spotlight and full-fledged washlight in one device
- Positioning within 540° PAN and 200° TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Rotating 3-facet prism with variable speed
- Strobe effect with 2-30 flashes per second
- Electronic dimmer (0-100%)
- Automatic position correction
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- 6 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Color wheel 1 x 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
- Gobo wheel with static gobos, 7 gobos and open
shake effect
- Gobo wheel with rotating gobos, 6 gobos and open
shake effect
- Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Integrated Showprograms
- Can be operated in 25 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain
- Flicker-free
- Effect: Gobo effect
- With a beam angle of 13°
- Multicolor LCD display for easy controlling
Package contents
- 1 x Moving light, 1 x User manual, 1 x Power cord, 1 x Omega holder, 1 x Safety eyelet
Roadinger Flightcase 2x TMH-S90/H90/B90
Flightcase for 2 x Eurolite LED TMH-S90 Moving-Head Spot
- For optimal security
- With 2 Device compartments
- High-quality workmanship with plywood glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding
- Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- With castors
| Weight: |
28,00 kg |
| Eurolite LED TMH-H90 Hybrid Moving-Head Spot/Wash COB |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
135 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
1 x 90 W COB (chip-on-board) cold white (CW)
6 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: |
2 - 30 Hz |
| Equipment: |
Prism 3-fold; gobo wheel with rotating gobos Single in slot; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: |
Color wheel 1 x 7 dichroic filters plus open |
| Gobos: |
Gobo wheel with static gobos, 7 gobos and open
Shake effect
Gobo wheel with rotating gobos, 6 gobos and open
Outside diameter 21,8mm
Image diameter 16mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: |
25 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
| Beam angle: |
13° |
| Beam angle (1/2 peak): |
Spot 13°
Wash effect 20° |
| Beam angle (1/10 peak): |
Wash effect 38° |
| Illuminance in Lux (lx): |
Spot cold white (CW) 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lx
Wash effect red (R) 1m: 974 lx, 3m: 101 lx, 6m: 26 lx
Wash effect green (G) 1m: 2008 lx, 3m: 244 lx, 6m: 66 lx
Wash effect blue (B) 1m: 518 lx, 3m: 49 lx, 6m: 13 lx
Wash effect cold white (CW) 1m: 2527 lx, 3m: 257 lx, 6m: 69 lx
Wash effect amber (A) 1m: 733 lx, 3m: 83 lx, 6m: 21 lx
Wash effect ultra violet (UV) 1m: 16 lx, 3m: 2 lx, 6m: 1 lx
Wash effect all 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx |
| Housing color: |
Black |
| Display type: |
Multicolor LCD display |
| Dimensions: |
Width: 25,0 cm
Depth: 22,0 cm
Height: 36,0 cm |
| Weight: |
6,50 kg |
| Noise classification: |
Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger Flightcase 2x TMH-S90/H90/B90 |
| Maximum load: |
50 kg |
| Aluminum profile frames: |
30 mm |
| Case handles: |
2 pc/pcs |
| Stop hinge: |
2 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Transport aid: |
Castors |
| Material: |
Plywood glued, 7 mm |
| Color: |
Black, laminated |
| Device compartment: |
20 cm x 26 cm x 37 cm |
| Accessory compartment: |
9,5 cm x 26 cm x 37 cm |
| Dimensions: |
Width: 57 cm
Depth: 32 cm
Height: 54 cm |
| Weight: |
13,15 kg |
| Shipping weight: |
28,00 kg
|
