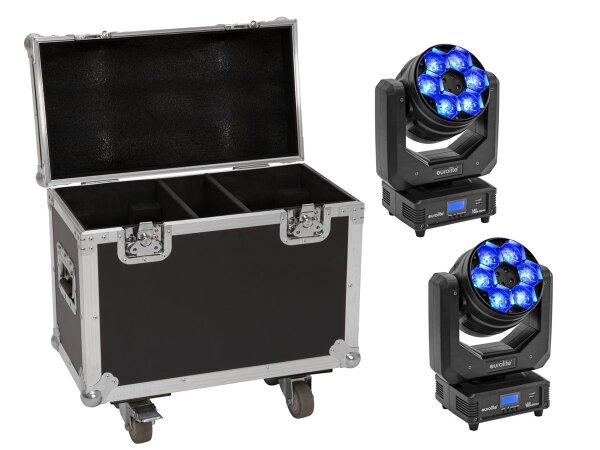

Eurolite LED TMH-H240 Beam/Wash/Flower Effect
Hybrid moving head with RGBW LEDs, zoom, macros, patterns and color temperature presets
- 3in1 moving head beam, wash and flower effect in one device
- 6 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
LEDs separate controlling
- Positioning within 540° PAN and 240° TILT
- PAN angle switchable between 540° and 360°
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor-driven; lens rotation
- Color blend stepless; color change; colors preset; patterns preset; background color adjustable; dimmer curves with adjustable response
- Strobe effect; fan effect; flower effect; multi beam effect
- Integrated show programs
- Can be operated in 16; 21; 24; 32; 56 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
- Flicker-free
- With a beam angle of 2° - 40°
- With Omega bracket
- LCD display
- Preprogrammed in Light´J; Light Captain; EASY SHOW 3
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x xLR cable
Roadinger Flightcase 2x TMH-S90/H90/B90
Flightcase for 2 x Eurolite LED TMH-S90 Moving-Head Spot
- For optimal security
- With 2 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding
- Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Castors
| Weight: |
26,80 kg |
| Eurolite LED TMH-H240 Beam/Wash/Flower Effect |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
190 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 3 A |
| Lamp type: |
LED lamp |
| LED: |
6 x 40 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: |
240° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: |
540°, 360° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: |
1 - 25 Hz |
| Equipment: |
Zoom motor-driven; lens rotation |
| DMX channels: |
16; 21; 24; 32; 56 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan |
| Control: |
Stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function |
| Preprogrammed in: |
Light´J; Light Captain; EASY SHOW 3 |
| Beam angle: |
2° - 40° |
| Beam angle (1/2 peak): |
2 - 25° |
| Beam angle (1/10 peak): |
8 - 40° |
| Illuminance in Lux (lx): |
Narrow red (R) 1m: 11423 lx, 3m: 5703 lx, 6m: 1423 lx
Narrow green (G) 1m: 28573 lx, 3m: 11882 lx, 6m: 2992 lx
Narrow blue (B) 1m: 3089 lx, 3m: 1835 lx, 6m: 513 lx
Narrow cold white (CW) 1m: 35392 lx, 3m: 15489 lx, 6m: 3899 lx
Narrow all 1m: 67721 lx, 3m: 30843 lx, 6m: 7807 lx |
| Housing color: |
Black |
| Attachment system: |
2x Omega bracket |
| Display type: |
LCD display |
| Dimensions: |
Width: 26 cm
Depth: 18 cm
Height: 33 cm |
| Weight: |
6,10 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger Flightcase 2x TMH-S90/H90/B90 |
| Maximum load: |
50 kg |
| Aluminum profile frames: |
30 mm |
| Case handles: |
2 pc/pcs |
| Stop hinge: |
2 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Transport aid: |
Castors |
| Material: |
Plywood multi-layer glued, 7 mm |
| Color: |
Black, laminated |
| Device compartment: |
20 cm x 26 cm x 37 cm |
| Accessory compartment: |
9,5 cm x 26 cm x 37 cm |
| Dimensions: |
Width: 57 cm
Depth: 31 cm
Height: 54 cm |
| Weight: |
13,15 kg |
| Shipping weight: |
26,80 kg
|
