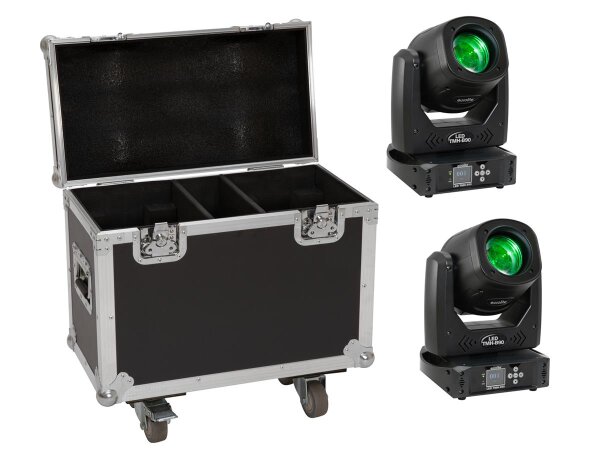

Eurolite Set 2x LED TMH-B90 + Case with wheels

SKU: 20000930
GTIN: 4026397164084
Category: Lighting-Sets
Manufacturers:

1.020,00 €

incl. 19% VAT , (Paket)

Available from: 15.12.2025

Eurolite LED TMH-B90 Moving-Head Beam

LED moving head beam with color wheel, static gobo wheel, prism and focus

Positioning within 540° PAN and 200° TILT
Exact positioning via 16 bit PAN/TILT movement resolution
Rotating 8-facet prism with variable speed
Strobe effect with 2-20 flashes per second
Electronic dimmer (0-100%)
Frost filter
Automatic position correction
Mains input and output for power linking up to 8 units
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Color wheel 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
Integrated Showprograms
Can be operated in 14 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light Captain
Flicker-free
Effect: Single Beam
With a beam angle of 3°
Good color rendering index (CRI)
LCD display for easy controlling

Package contents

1 x Moving light, 1 x User manual, 1 x Power cord, 1 x Omega holder, 1 x Safety eyelet

Roadinger Flightcase 2x TMH-S90/H90/B90

Flightcase for 2 x Eurolite LED TMH-S90 Moving-Head Spot

For optimal security
With 2 Device compartments
High-quality workmanship with plywood glued 7 mm, black, laminated
Interior with foam padding
cover with foam padding
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
With castors

Weight:	28,40 kg
Eurolite LED TMH-B90 Moving-Head Beam
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	125 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Device fuse:	5 x 20 mm, T 2 A Fuse replaceable
Lamp type:	LED lamp
LED:	1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	Exact positioning (16 bit resolution) 200° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate:	2 - 20 Hz
Equipment:	Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold; frost filter
Color generation:	Color wheel 7 dichroic filters plus open
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	14
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain
Beam angle:	3°
Beam angle (1/2 peak):	3°
Color rendering index (CRI):	80 Ra
Illuminance in Lux (lx):	Cold white (CW) 3m: 33839 lx, 6m: 10454 lx
Housing color:	Black
Display type:	LCD display
Dimensions:	Width: 25,5 cm Depth: 20,5 cm Height: 33,0 cm
Weight:	6,55 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
Roadinger Flightcase 2x TMH-S90/H90/B90
Maximum load:	50 kg
Aluminum profile frames:	30 mm
Case handles:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	Castors
Material:	Plywood glued, 7 mm
Color:	Black, laminated
Device compartment:	20 cm x 26 cm x 37 cm
Accessory compartment:	9,5 cm x 26 cm x 37 cm
Dimensions:	Width: 57 cm Depth: 32 cm Height: 54 cm
Weight:	13,15 kg
