Eurolite LED IP TMH-W285 Hypno Moving Head Wash
Weather-proof moving washlight with RGBW LEDs, backlighting via RGB hypno LEDs and zoom
- 19 LEDs 15 W SMD 5050 4in1 RGBW (homogenous color mix)
3 segments controlled separately
- 72 LEDs 0.12 W SMD 2528 3in1 RGB (homogenous color mix)
- Positioning within 540° PAN, 260° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor driven
- Dimmer; Dimmer speed (step response) adjustable; color blend stepless; color macros; colors preset
- Wash effect; beam effect
- The device is cooled by cooling fan at the head
- Control via stand-alone; DMX; RDM; master/slave function
- Flicker-free
- With a beam angle of 2° - 48°
- With omega bracket
- Multicolor LCD display
- 2 Rugged carrying handles
- 4 x rubber feet
- Mains input and output for power linking up to 4 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental; restaurants, bars and hotels; theater
- Application possibility: Standing; suspended
- Can be operated in 18; 26 CH mode
Roadinger Flightcase PRO 2x IP TMH-W285 with wheels
Trunk case with castors, PRO version
- With 2 device compartments
- With 1 accessory compartment
- Interior with foam padding
cover with foam padding
- Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 x castors with 2 locking brakes
- High-quality workmanship with plywood multi-layer glued 9.5 mm, black
- Closes with a
- PENN Hardware

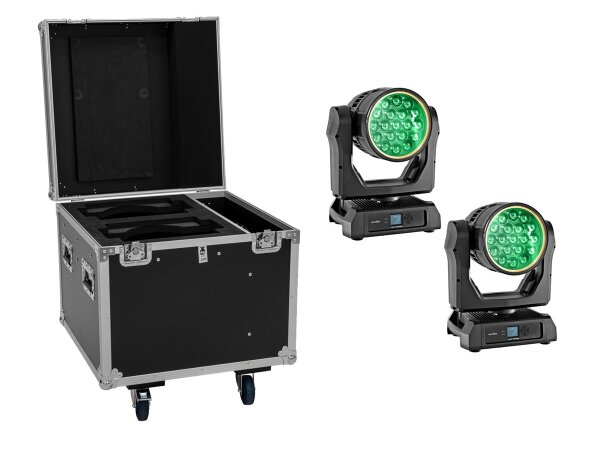

Scope of delivery
2 x Eurolite LED IP TMH-W285 Hypno Moving Head Wash
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
| Weight: |
68.45 kg |
| Eurolite LED IP TMH-W285 Hypno Moving Head Wash |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
195 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1.0 mm² H07RN-F |
| Power output: |
IP T-Con (F) mounting version |
| Lamp type: |
LED lamp |
| LED type: |
19 x 15 W SMD 5050 4in1 RGBW (homogenous color mix)
72 x 0.12 W SMD 2528 3in1 RGB (homogenous color mix) |
| Max. TILT movement: |
260° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: |
1.3 - 10.6 Hz |
| Equipment: |
Zoom motor driven |
| DMX channels: |
18; 26 |
| DMX input: |
3-pin XLR (M) mounting version IP
5-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP
1 x 5-pin XLR (F) mounting version IP |
| Cooling: |
1 x cooling fan at the head |
| Control: |
Stand-alone; DMX; RDM; master/slave function |
| Fixtures available for: |
Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
26000 Hz |
| DMX fail mode: |
Hold; blackout |
| Beam angle: |
2° - 48°° |
| Beam angle (1/2 peak): |
2 - 30° |
| Beam angle (1/10 peak): |
8 - 48° |
| Housing color: |
Black |
| Attachment system: |
2x omega bracket |
| Display type: |
Multicolor LCD display |
| Status LED: |
DMX, fault |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Diameter mounting holes: |
2 x Ø11mm |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Plastic |
| Dimensions: |
Width: 38.8 cm
Depth: 25.7 cm
Height: 49.1 cm |
| Weight: |
15.40 kg |
| Noise classification: |
Class 2 (slight noise) depending on mode used |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger Flightcase PRO 2x IP TMH-W285 with wheels |
| Maximum load: |
100 kg |
| Aluminum profile frames: |
30 mm |
| Case handle: |
4 pc/pcs |
| Stop hinge: |
2 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Transport aid: |
4 x castors with 2 locking brakes |
| Use of brands: |
PENN Hardware |
| Material: |
Plywood multi-layer glued, 9.5 mm |
| Color: |
Black |
| Inside dimensions: |
63.5 cm x 62.5 cm x 44.5 cm |
| Accessory compartment: |
15 cm x 62.5 cm x 44.5 cm |
| Dimensions: |
Width: 65 cm
Depth: 62.6 cm
Height: 73 cm |
| Weight: |
32.20 kg |
| Shipping weight: |
70,00 kg
|
