Safety features

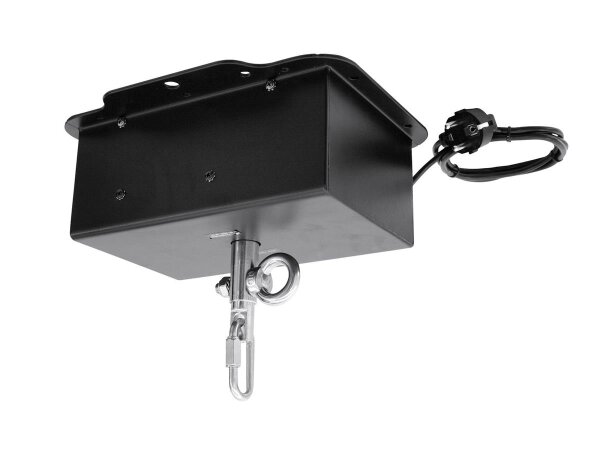

Mirror ball motor for up to 150 cm diameter
- Suitable for driving mirror balls up to a maximum weight of 150 kg
- This weight corresponds with a diameter of 150 cm for the Eurolite mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
| Power supply: |
230 V AC, 50 Hz ~ |
| Power consumption: |
7 W |
| Max. load WLL (4-fold): |
450 kg |
| Max. load BGV C1 (8-fold): |
225 kg |
| Max. load BGV C1 (10-fold): |
180 kg |
| Max. load BGV C1 (12-fold): |
150 kg |
| Max. diameter of mirror ball: |
150 cm (Eurolite) |
| Rotation-speed: |
approx. 1 RPM |
| Dimensions (LxWxH): |
280 x 240 x 110 mm |
| Weight: |
5 kg |
| Shipping weight: |
6.00 kg |
| Shipping weight: |
6,00 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
22,00 × 30,00 × 26,50 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
