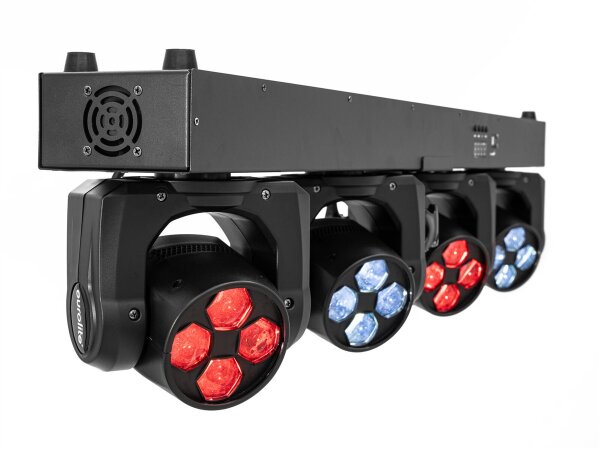

This bar combines four fully featured moving heads in a single system. Each unit is equipped with four 15 W LEDs with RGBW color mixing, allowing for both tight beams and room-filling flower effects.The bar can be used flexibly: mounted on a stand, placed on the floor, or suspended from a truss. Special attention has been paid to ease of control, ensuring that even smaller DMX controllers can operate the bar efficiently. Dedicated modes are available that allow a wide range of positions, movements, chases, and effects to be created using only a few DMX channels. A great example of a suitable controller is the Eurolite Color Chief, which pairs perfectly with this bar.
LED lighting system with 4 individually controllable 60 W moving heads with flower effect in RGBW
- 16 LEDs 15 W SMD 6065 4in1 RGBW
4 moving lights effects controlled separately
- Positioning within 540° PAN, 180° TILT
- Exact positioning (16 bit resolution)
- Lens rotation
- Dimmer electronic; Motion macros adjustable; color selection; color macros adjustable
- Flower effect; beam effect
- 22 integrated show programs
- The device is cooled by cooling fan at the base; cooling fan at the head
- Control via stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 2°
- With omega bracket
- Monochrome 4 digit 7-segment LED display
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; stage; mobile djs / entertainer; restaurants, bars and hotels; party room
- Application possibility: Standing; suspended
- Can be operated in 5; 9; 14; 16; 25; 29; 44; 52 CH mode
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
- 2 x safety eyelet
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
225 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1.0 mm² H05VV-F |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
16 x 15 W SMD 6065 4in1 RGBW |
| Max. TILT movement: |
180° exact positioning (16 bit resolution) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) |
| Flash rate: |
2 - 15 Hz |
| Equipment: |
Lens rotation |
| DMX channels: |
5; 9; 14; 16; 25; 29; 44; 52 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
2 x cooling fan at the base
4 x cooling fan at the head |
| Control: |
Stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: |
Light´J; Light Captain; Colorchief |
| Projection: |
Flicker-free |
| PWM frequency: |
11000 Hz |
| DMX fail mode: |
Hold; blackout |
| Beam angle: |
2° |
| Beam angle (1/2 peak): |
2 |
| Beam angle (1/10 peak): |
6 |
| Lamp life: |
20000 h |
| Housing color: |
Black |
| Attachment system: |
Tube: Ø 35mm
2x omega bracket |
| Display type: |
Monochrome 4 digit 7-segment LED display |
| Control elements: |
Power switch |
| USB port: |
Type A |
| Transport aid: |
4 x rubber feet |
| Diameter mounting holes: |
2 x Ø10mm |
| Material: |
Metal |
| Dimensions: |
Width: 100 cm
Depth: 17.5 cm
Height: 26.0 cm |
| Weight: |
12.70 kg |
| Noise classification: |
Class 2 (slight noise) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
14,25 kg
|
