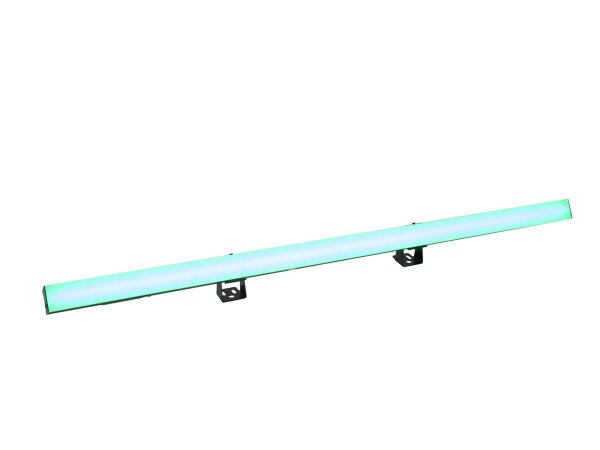

DMX-controllable pixel rail with RGB color mixing
- Tube with 96 high power RGB LEDs (3in1) for light effects
- Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
- Auto, music, master/slave and DMX mode
- Static colors, automatic color change, internal programs with variable speed, dimmer settings
- 12 built-in auto and music show programs
- Direct color selection for 17 preset colors
- 3, 5, 8, 48 or 96 DMX channels selectable
- DMX and power terminals intelligently designed for easy wiring
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Addressing and setting via control panel with 4-digit LED display
- Metal housing with brackets for hanging as well as standing installation indoors
- Front cover: black
- Swivel mounting bracket
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Can be operated in 3; 5; 8; 48; 96 CH mode
- The device is cooled by passive cooling by convection
- Controling by Stand-alone; DMX; Sound to light via Microphone
- Flicker-free projection
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
30 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x P-Con (gray), mounting version |
| LED: |
96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 5; 8; 48; 96 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive cooling by convection |
| Control: |
Stand-alone
DMX
Sound to light via Microphone |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Housing color: |
Black |
| Length: |
99.9 cm |
| Width: |
4.0 cm |
| Height: |
13.5 cm |
| Weight: |
2.00 kg |
| Legal specifications |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| Shipping weight: |
2,55 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
20,00 × 104,50 × 10,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
