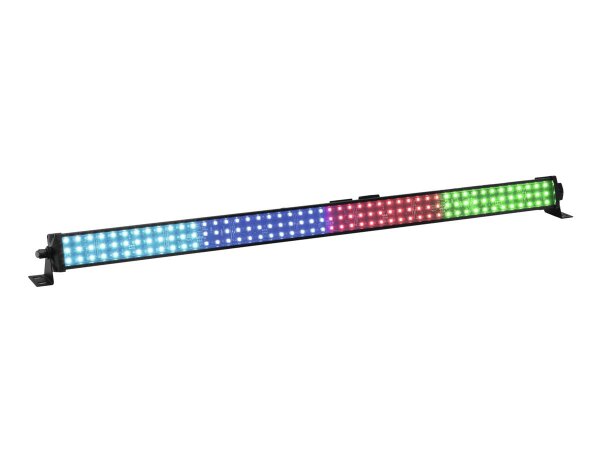

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments
- Equipped with 144 x SMD-LED in the colors red, green and blue
- Flicker-free projection
- 3, 5, 6, 12, 24 or 48 DMX channels selectable
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Addressing and setting via Control Board with LED display and four operating buttons
- Functions: Static colors, RGB color blend, internal programs, dimmer, strobe settings via DMX, Master/Slave
- Subdivided into 8 pixels (illumination units with 18 LED each) which can be controlled individually via DMX
- Sound-control via built-in microphone, sensitivity adjustable via control board
- Hanging as well as standing installation possible
- Locking possibility at the brackets
- Switch-mode power supply for operation between 100 and 240 volts
- DMX control via every standard DMX controller
- Feed-through output allows to power up to 8 devices
- Ready for connection via enclosed IEC power cord with safety-plug
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
25 W |
| DMX control channels: |
3/5/6/12/24/48 |
| DMX512 connection: |
3-pin XLR |
| Sound-control: |
via built-in microphone |
| Flash-rate: |
20 Hz |
| LED type: |
RGB-SMD |
| LED number: |
144 |
| Dimensions (L x W x H): |
1020 x 65 x 80 mm |
| Weight: |
1.5 kg |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| Shipping weight: |
1,86 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
11,00 × 105,00 × 12,00 cm |
