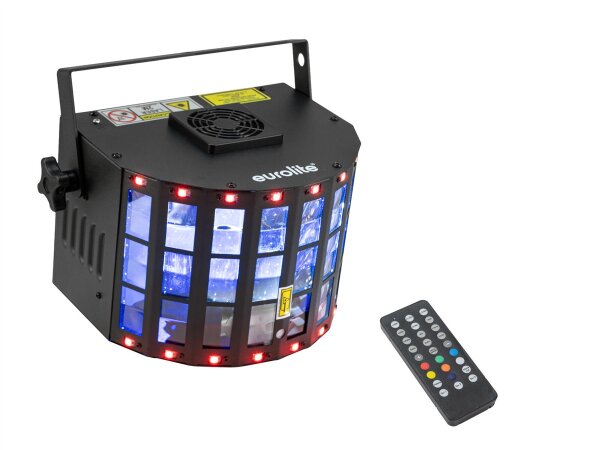

The MK3 version of the Laser Derby continues to deliver an impressively bright derby effect for its size, featuring red, green, blue, and white beams, along with an integrated red and green star laser. The laser remains class 2M, meaning no laser safety certification or emergency stop is required in Germany (regulations may vary in other countries).There are also two key upgrades: the previous white strobe LEDs have been replaced with multi-color twinkle LEDs. These can still produce white strobe effects but are now also capable of creating colorful chases and sparkling effects.In addition, the Laser Derby is now part of the AIR series. This means that, alongside standard DMX and stand-alone functions, it also benefits from the AIR system features, including a cross-series wireless remote control, an integrated wireless module for master-slave operation, and additional advanced control options.
DMX light effect with RG laser (2M), rotating LED derby, twinkle effect, AirW wireless system (2.4 GHz) and RF remote control
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Integrated AirW radio transceiver for wireless master/slave operation
- 2 laser diodes project hundreds of red and green laser beams
- Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color macros adjustable; program selection; program speed adjustable; effect speed adjustable; Rotation direction adjustable; Rotation speed adjustable
- Multi beam effect; laser; strobe effect
- 7 integrated show programs
- Direct color selection for 20 preset colors
- Control via stand-alone; sound to light via microphone; rotary dial for microphone sensitivity; master/slave function; wireless remote control; DMX; AirW; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- AirW: operating range up to 70m with line-of-sight
- Wireless remote control: operating range up to 30m with line-of-sight
- 3 buttons on the remote control for saving your own settings
- Flicker-free
- Monochrome 4 digit 7-segment LED display
- The device is cooled by cooling fan
- Can be operated in 2; 4; 5; 6; 8; 9; 10; 14 CH mode
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Suspended; on stand
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
light effect
- 4 LEDs 10 W SMD 5050 R/G/B/W
LEDs controlled separately
strobes
- 16 LEDs 0.5 W SMD 5050 3in1 RGB
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x remote control
- 1 x battery
- 1 x mounting bracket
- 2 x knurled screw
- 2 x washer
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
40 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Cable construction: |
3 x 0.75 mm² H05VV-F |
| Fuse: |
5 x 20 mm, T 1.6 A fuse replaceable |
| Lamp type: |
LED lamp |
| DMX channels: |
2; 4; 5; 6; 8; 9; 10; 14 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; sound to light via microphone; rotary dial for microphone sensitivity; master/slave function; wireless remote control; DMX; AirW; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: |
Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
4000 Hz |
| Range: |
AirW: range up to 70m with line-of-sight
Wireless remote control: range up to 30m with line-of-sight |
| Carrier frequency: |
2.4 GHz |
| Modulation: |
GFSK |
| DMX fail mode: |
Blackout; full on; hold; auto |
| Housing color: |
Black matte |
| Display type: |
Monochrome 4 digit 7-segment LED display |
| Status LED: |
Auto mode, sound mode, DMX, slave mode |
| USB port: |
1 x type A |
| Material: |
Metal, painted |
| Dimensions: |
Width: 26 cm
Depth: 19 cm
Height: 19 cm |
| Weight: |
2.22 kg |
| Noise classification: |
Class 2 (slight noise) |
| Remote control |
| Battery: |
1 x 12 V 23AE alkaline manganese included |
| Carrier frequency: |
433.92 MHz |
| Mounting bracket |
| Attachment system: |
1x Ø 10mm |
| Diameter mounting holes: |
1 x Ø10.2mm |
| Material thickness: |
2.3 mm |
| Laser |
| Laser class: |
2M |
| Laser color: |
R/G |
| Laser module: |
Green (G) 35 mW 520nm
Red (R) 80 mW 650nm |
| Light effect |
| LED type: |
4 x 10 W SMD 5050 R/G/B/W |
| Flash rate: |
0.7 - 20 Hz |
| Strobes |
| LED type: |
16 x 0.5 W SMD 5050 3in1 RGB |
