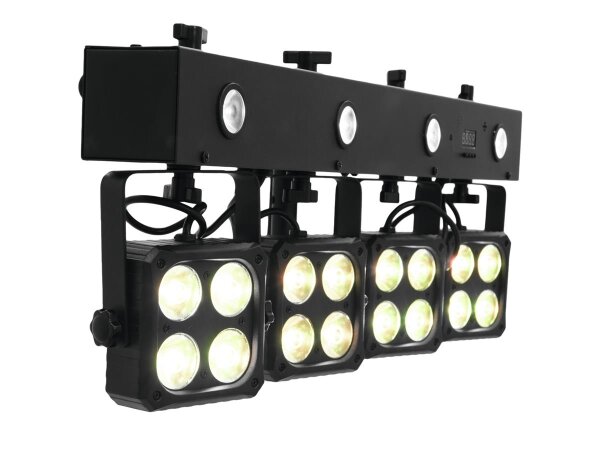

Compact light set with 4 spots, 4 strobes, IR remote and bag for mobile use
- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light ideally suited for mobile use
- Ideal for bands, stages or solo entertainers
- Suited for installation on a speaker stand (not included) or truss
- Comes pre-assembled with practical transport bag
- 4 quadcolor (4in1) LEDs per spot provide for an exquisite RGBW color mix
- Strobe effect with 4 white 1 W LEDs
- Movable and tiltable spotlights
- Via DMX, each spot can be individually controlled
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Sound-control via built-in microphone, microphone sensitivity adjustable
- Supports QuickDMX for wireless reception of DMX512 signals
- DMX512 control via any commercial DMX controller (occupies 21 channels)
- 3, 4, 8 or 21 DMX channels selectable
- Flicker-free projection
- Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation
- Addressing and setting via control panel with 4-digit LED display
- Additional controlling possibility via the Eurolite IR-7 remote control, included in delivery
- Black lacquered metal version with movable mounting bracket
- Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
- Switch-mode power supply for operation between 100 and 240 volts
- Feed-through output allows to power up to 8 devices
- Ready for connection via IEC power cord with safety plug
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
80 W |
| Number of DMX channels: |
3/4/8/21 |
| DMX512 connection: |
3-pin XLR |
| QuickDMX connection: |
5-pin XLR |
| Sound-control: |
via built-in microphone |
| LED type: |
8 W QCL / 1 W |
| Number LEDs: |
16 RGBW, 4 white |
| Beam angle: |
9° |
| Dimensions (WxDxH): |
600 x 140 x 230 mm |
| Weight: |
4 kg |
| Shipping weight: |
5.50 kg |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| Shipping weight: |
5,50 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
29,00 × 66,00 × 19,00 cm |
