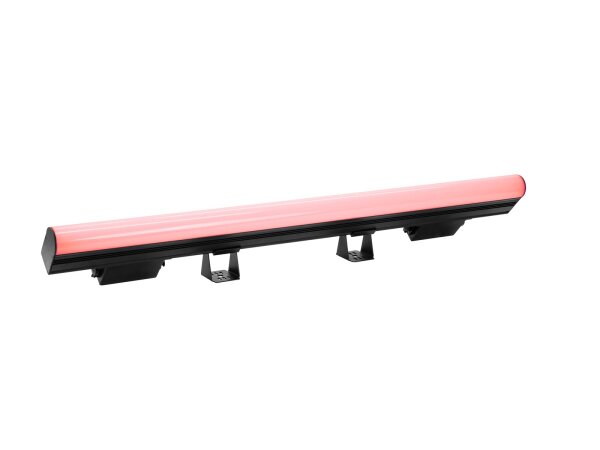

Weather-proof DMX pixel tube with RGB/WW color mixing
- 102 powerful LEDs 0,5 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
34 segments controlled separately
- 12 integrated show programs
- Direct color selection for 19 preset colors
- Control via stand-alone; DMX; Master/slave function
- Color change adjustable; Dimmer electronic; program speed adjustable; background color adjustable; running light adjustable
- Flicker-free
- With a beam angle of 120°
- The device is cooled by passive convection cooling
- With Mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Suitable for outdoor use IP65
- For application areas such as: Clubs/dancing school; Installation; Stage; architecture
- Silent operation
- Application possibility: Suspended; wall mounting
- Preprogrammed in Light Captain
Package contents
- 1 x light effect, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
40 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: |
IP T-Con (F) mounting version |
| Fuse: |
5 x 20 mm, F 1 A Fuse serviceable |
| Lamp type: |
LED lamp |
| LED type: |
102 x 0,5 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 4; 6; 9; 13; 20; 68; 136 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; Master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Housing color: |
Black |
| Attachment system: |
Ø 10mm
2x Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Length: 1,001 m
Width: 7,0 cm
Height: 16,8 cm |
| Weight: |
3,84 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
4,39 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
21,20 × 104,20 × 10,20 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
info@steinigke.de
