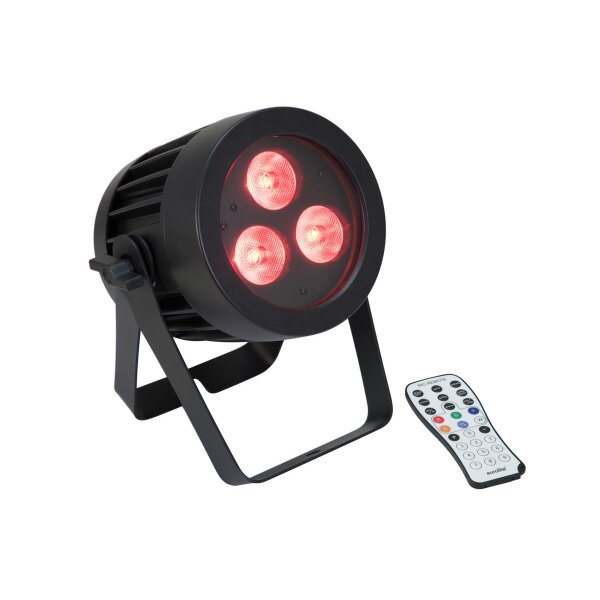

Weatherproof (IP65) spotlight with 3 QCL LEDs and RGBW color mixing
- 3 high-power 8 W RGBW LEDs (4in1)
- Suitable for external use (IP65)
- Auto, master/slave and DMX mode
- Built-in auto show programs
- Color temperature adjustable in 6 steps (2700-8000 K)
- Direct color selection for 25 preset colors
- Stepless RGBW color blend, color change, color fade, dimmer and strobe effect
- Addressing via control panel with LCD screen and four operating buttons
- Convenient wireless control via included IR remote control Eurolite IR-7
- 2 diffuser covers (40° und 15x60°) optionally available, not included in delivery
- DMX512 control possible via any commercial DMX controller
- 3, 4, 5, 6 or 10 DMX channels selectable
- Swivel mounting bracket
- Additional bracket for floor use
- Feed-through output allows to power up to 8 devices
- Power connection via IP T-Con jack and included power cable with safety plug
- LED: 3 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 5; 6; 10 CH mode
- The device is cooled by passive cooling by convection
- Controling by Stand-alone; IR remote control; DMX
- Flicker-free projection
- Suitable for outdoor use
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
30 W |
| IP classification: |
IP65 |
| Power connection: |
Mains input IP T-Con (M) mounting version Power supply cord with safety plug (provided) |
| Power output: |
IP T-Con (F) mounting version |
| LED: |
3 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 4; 5; 6; 10 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Passive cooling by convection |
| Control: |
Stand-alone
IR remote control
DMX |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
15° |
| Beam angle (1/10 peak): |
30° |
| Housing color: |
Black |
| Display type: |
LCD display |
| Width: |
21.5 cm |
| Height: |
24.4 cm |
| Depth: |
17.1 cm |
| Weight: |
2.90 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| Shipping weight: |
3,20 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
29,00 × 19,00 × 19,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
