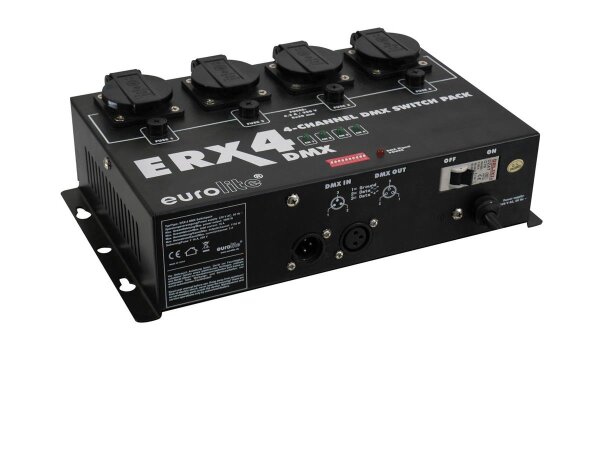

4-channel DMX switch pack
- Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
- 4 controllable channels
- LED indicator per channel
- 5 A load per channel
- Maximum current 16 A
- Outputs via 4 safety sockets
- DMX512 input and output
- DMX starting address adjustable via DIP switches
- For truss installation and wall installation
| Power supply: |
230 V AC, 50 Hz ~ |
| Max. power output: |
3680 W |
| Max. total current: |
16 A |
| Number of channels: |
4 |
| Load/channel: |
1150 W |
| Max. current/channel: |
5 A |
| Output sockets: |
4 safety power outlets |
| DMX output: |
3-pin XLR mounting plug |
| DMX input: |
3-pin XLR mounting jack |
| Dimensions: |
300 x 190 x 85 mm |
| Weight: |
2.8 kg |
| Shipping weight: |
2.60 kg |
| Shipping weight: |
2,60 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
14,00 × 34,00 × 27,50 cm |
