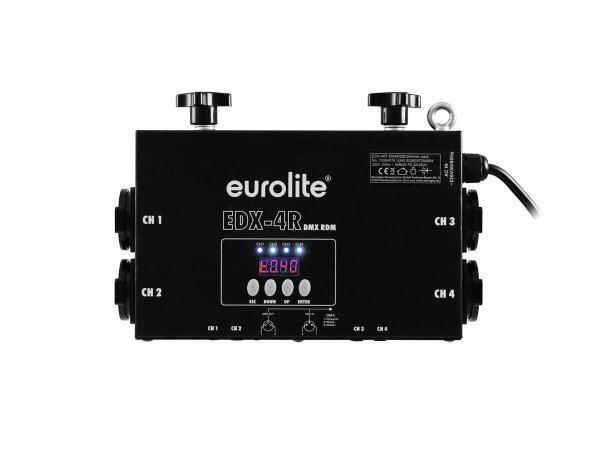

4-channel DMX dimmer pack
- DMX dimmer pack for truss installation
- Connected load: 4 x 1150 W
- 4 DMX channels
- LED status indication for each output channel
- Control panel with 4-digit LED display for addressing and settings
- Individual dimmer curves per channel (linear, square, inverse square, switch)
- 10 programmable chases with 30 scenes each can be stored
- Automatic and sound-controlled chase running mode
- 10 programmable scenes
- Supports RDM
- DMX512 input and output
- Outputs via 4 safety sockets
- 2 x M8 thread
| Power supply: |
230 V AC, 50 Hz ~ |
| Max. power output: |
3680 W |
| Max. total current: |
16 A |
| Resistive load/channel: |
1150 W |
| Max. current/channel: |
5 A |
| Number of control channels: |
4 |
| Storable scenes: |
10 |
| Storable chases: |
10 with 30 steps each |
| Sound control: |
via built-in microphone |
| Output sockets: |
4 safety power outlets |
| DMX output: |
3-pin XLR mounting plug |
| DMX input: |
3-pin XLR mounting jack |
| Dimensions (WxDxH): |
270 x 185 x 75 mm |
| Weight: |
2.3 kg |
| Shipping weight: |
2.75 kg |
| Shipping weight: |
2,75 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
14,50 × 34,00 × 25,00 cm |
