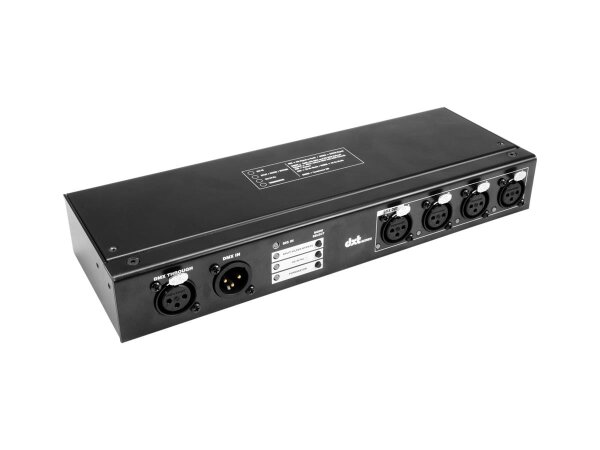

RDM-capable DMX splitter, 1 in/4 out with signal boost
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4 x DMX output
- Input and feed-through output are duplicated on the front and rear panel and connected in parallel
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- DMX fail mode selectable: hold, blackout, null
- Switchable termination resistor
- Input and outputs XLR 3-pin (Neutrik)
- Outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- Powered via included PSU
- Rack installation via optional rack mounting kit (item 70064872)
- Made in Germany
| Power supply: |
12 V DC, 1 A via included PSU |
| Power consumption: |
3.6 W |
| DMX512 input: |
2 x 3-pin XLR plug (Neutrik) |
| DMX feed-through output: |
2 x 3-pin XLR connector (Neutrik) |
| DMX512 output: |
4 x 3-pin XLR connector (Neutrik) |
| Dimensions (L x W x H): |
275 x 100 x 41 mm |
| Weight: |
1.1 kg |
| Weight: |
1,25 kg |
| Shipping weight: |
1,40 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
5,50 × 32,50 × 24,00 cm |
