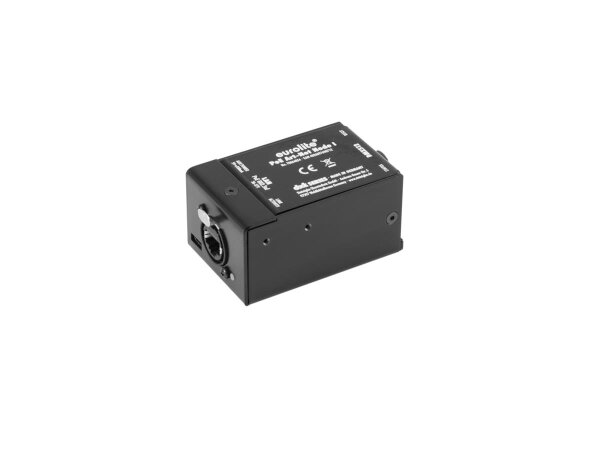

Art-Net interface for control of 512 DMX channels
- DMX512 connection via 3-pin XLR plug (female)
- etherCON network connection with PoE
- Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
- Up to 512 DMX channel input and output
- DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
- ArtDMX reception via Broadcast or Unicast
- Configuration with website or Art-Net
- Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
- Rugged metal body for use on stage
- Mounting brackets optionally available (No. 70064875)
- Including USB A/C cable
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by ArtNet
- The device can be connected via RJ-45 etherCON (F) mounting version to the PC
- Hergestellt in Deutschland
| Power supply: |
5 V DC 500 mA
37-56 V DC |
| IP classification: |
IP20 |
| Power connection: |
Mains input USB C (F) mounting version Power supply cord for USB A mains connection (provided)
Mains input RJ-45 (F) mounting version |
| DMX channels: |
Input 512
Output 512 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Network connection: |
Protocol: Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s |
| Control: |
ArtNet |
| Status LED: |
Signal, link |
| Use of brands: |
Built with Neutrik connector |
| Color: |
Black |
| PC connect: |
Via RJ-45 etherCON (F) mounting version |
| Dimensions: |
Width: 7,8 cm
Depth: 5 cm
Height: 4,2 cm |
| Weight: |
470 g |
| Shipping weight: |
0,34 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
4,50 × 17,50 × 11,50 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
