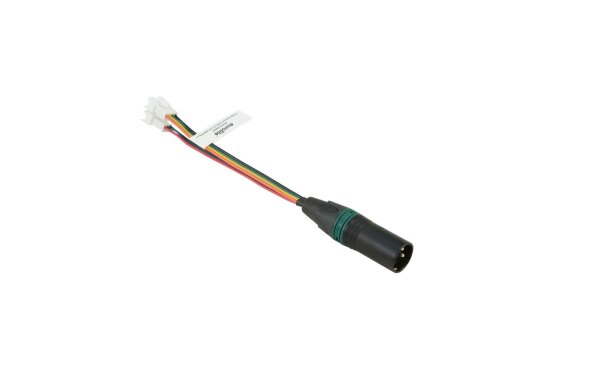

Compact DMX converter for LED pixel strips
- Can control up to 18,000 digital LED pixels via a DMX512 signal
- Extremely compact design placed in the XLR plug
- 1 x 4-pin JST connector (M) with Data and Clock output
- 1 x 3-pin JST connector (M) with Data output
- Multiple LEDs can be grouped together to form virtual pixels, e.g. a strip with 300 LEDs can be controlled with 3 DMX channels
- 1 to 6 colors per pixel
- Refresh rate: DMX, 40 Hz, 20 Hz, 10 Hz, 5 Hz
- Does not require a separate adapter - power supply is via LED strip (5-12 V)
- Mounting via supplied plastic clip
- Configuration via software tool (Windows) and the Eurolite USB-DMX adapter (item 51860118)
- The "Pixel Converter Config Tool" is available for download from the product page at www.eurolite.de
- Hergestellt in Deutschland
| Power supply: |
5-12 V DC 20 mA |
| Dimensions: |
Length: 7,5 cm
Diameter: Ø 2 cm |
| Weight: |
40 g |
| Shipping weight: |
0,22 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
6,00 × 33,00 × 24,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
