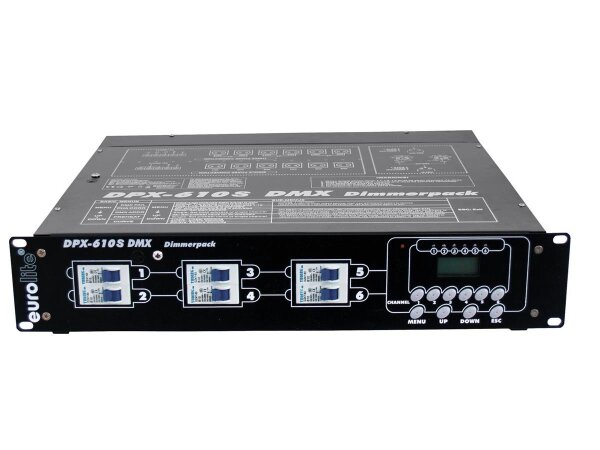

Digital 6-channel dimmer pack
- Universal dimmer pack for professional use
- Can be operated 1-phase or 3-phase
- 6 x 10 A
- DMX-control or analogue control possible
- The DMX-starting address can be adjusted on the device
- Synchronisation of several DPX-610 S possible via DMX
- Adjusting the lamp pre-heat
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Channel-outputs on the rearpanel via safety sockets
- Only for professional use
| Power supply: |
230-380 V AC, 50 Hz ~ |
| Max. power output: |
13800 W |
| Max. current: |
60 A |
| Number of control channels: |
6 |
| Max. output/channel: |
2300 W |
| Max. current/channel: |
10 A |
| Integrated programs: |
12 |
| Output sockets: |
Safety sockets |
| Circuit breaker: |
6 x C 10 A |
| Dimensions (WxDxH): |
410 x 482 x 95 mm |
|
Rack installation with 2 U |
| Minimum mounting depth: |
500 mm |
| Weight: |
8 kg |
| Shipping weight: |
8.65 kg |
| Shipping weight: |
8,65 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
19,00 × 54,00 × 49,00 cm |
