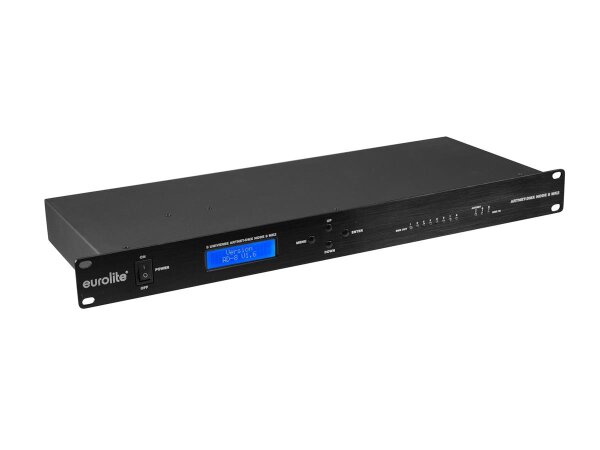

Eurolite Art-Net/DMX Node 8 MK2

Item number: 70064843

Category: DMX/RDM/Artnet Accessories

399,00 €

including 19% VAT., no shipping costs (Paket)

Recommended retail price: 474,81 €
(You save 15.97%, that is 75,81 €)
piece
12 piece In stock (1 - 3 workdays)

Art-Net/DMX converter with 8 universes
  • Distributes Art-Net data to 8 DMX512 universes (4096 channels)
  • Parallel DMX input possible (1024 channels)
  • 8 optically isolated XLR plugs (3-pin) for DMX output
  • 2 XLR jacks (3-pin) for DMX input
  • Variable data routing capabilities for all DMX outputs
  • 2 x Neutrik etherCON in/through port
  • Serial connection possible
  • User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
  • LED indication for functions
  • Splitter operation possible
  • Rack installation 1 U
Power supply:100-240 V AC, 50/60 Hz
Power consumption:5 W
DMX512 inputs:2 x 3-pin XLR male
DMX512 outputs:8 x 3-pin XLR female
Ethernet:2 x RJ45 10/100 Mbps (Neutrik etherCON)
Protocol:Art-Net 3
Dimensions (LxWxH):483 x 175 x 44 mm
Weight:2.4 kg
Shipping weight:2.50 kg
Shipping weight:
2,50 Kg
Dimensions(LxWxH) ( length × width × height ):
9,00 × 57,00 × 21,00 cm
