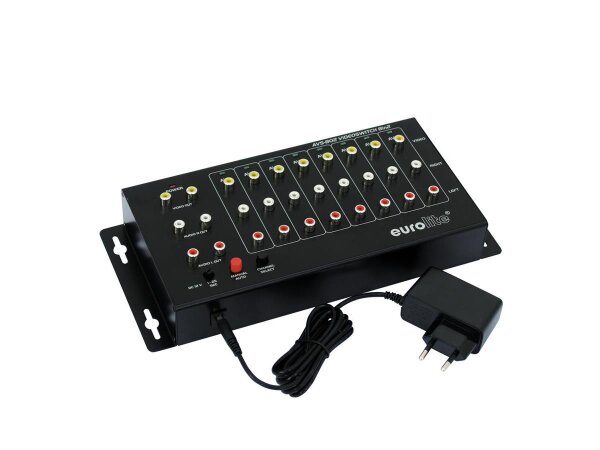

8-way AV switch
- For switching eight AV sources (audio, composite video and s-video television signals) to up to two television monitors
- Typical applications are security or information systems in shopping centres, schools, hotels, railway stations, airports etc.
- 8 inputs (RCA), manually or automatically switchable
- Automatic switching time adjustable from 1 to 25 seconds
- 2 outputs (RCA)
- Simultaneous recording to one or two video or DVD recorders
- A stereo system can be connected via the second output
- 12 V power supply via power unit included in the delivery
| Power supply: |
100-240 V AC, 50/60 Hz ~, |
|
via supplied power unit |
| Power consumption: |
6 W |
| Video |
|
| 8 x inputs: |
1 Vpp/ 75 ohms, composite RCA |
| 2 x outputs: |
1 Vpp/ 75 ohms, composite RCA |
| Gain: |
2 V, 1 V (terminated)/ 75 ohms |
| Return loss: |
>18 dB |
| Video bandwidth: |
>100 MHz |
| Audio |
|
| 8 x inputs: |
22 kohms, stereo RCA |
| 2 x output: |
1 kohms, stereo RCA |
| Gain: |
nominal 0 dB |
| THD: |
0.05 % |
| Channel separation: |
>75 dB |
| Frequency response: |
20 Hz - 100 kHz |
| S/N ratio: |
100 dB |
| Dimensions: |
282 x 128 x 50 mm |
| Weight: |
1 kg |
| Shipping weight: |
1.09 kg |
| Shipping weight: |
1,09 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
6,00 × 35,50 × 13,50 cm |
