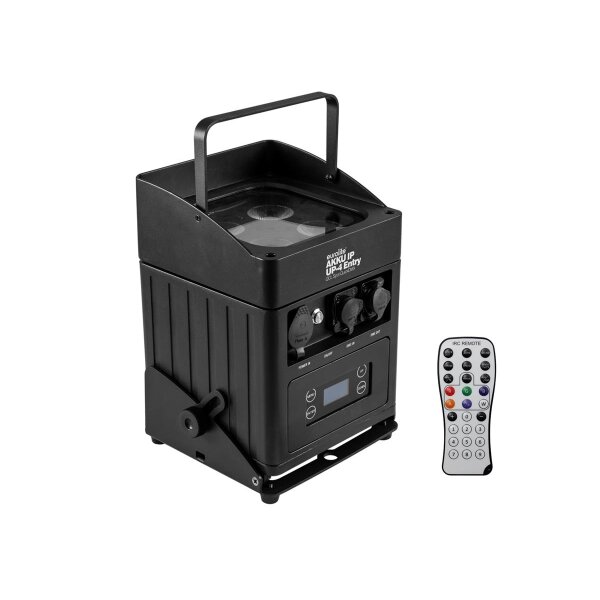

IP65 battery-powered uplight with RGBW LEDs, QuickDMX and IR remote control
- Integrated QuickDMX transmitter/receiver for wireless transmission of DMX512 signals
- 4 high-power 8 W RGBW LEDs (4in1)
- 2 diffuser discs for varying beam angles of 15x60° and 40°, (optional accessories)
- Battery operation up to 12 hours (depending on program used), recharging time 3 hours
- Auto, master/slave and DMX mode
- Wireless master/slave operation via QuickDMX
- Built-in auto show programs
- Direct color selection for 19 preset colors
- Stepless RGBW color mixture, color change, color fade, dimmer, strobe effect with variable speed
- Addressing and setting via control panel with 4 buttons and OLED display
- Convenient wireless control via included IR remote control Eurolite IR-7
- 3, 4, 5, 6, or 9 DMX channels selectable
- Sturdy housing with carrying handle and folding foot for angled placement
- Additional rubber feet
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 4 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; IR remote control; DMX; Master/slave function; QuickDMX built-in
- Flicker-free projection
- Suitable for outdoor use
| Power supply: |
100-240 V AC, 50/60 Hz |
| IP classification: |
IP65 |
| Protection class: |
Class I |
| Power connection: |
Battery/battery pack built-in
Mains input IP T-Con (M) mounting version Power supply cord with safety plug (provided) |
| Battery pack type: |
1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh |
| Battery pack: |
Battery operation up to 12h depending on program used
Recharging time 3h |
| Lamp type: |
LED lamp |
| LED: |
4 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: |
3; 4; 5; 6; 9 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; IR remote control; DMX; Master/slave function; QuickDMX built-in |
| Beam angle: |
16° |
| Beam angle (1/2 peak): |
16° |
| Beam angle (1/10 peak): |
32 |
| Housing color: |
Black |
| Display type: |
OLED display |
| Carrier frequency: |
2,4 GHz |
| Dimensions: |
Width: 19,00 cm
Depth: 15,50 cm
Height: 23,25 cm |
| Weight: |
4,40 kg |
| Remote control |
| Battery: |
Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| intended use: |
show effect lighting |
| Shipping weight: |
4,90 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
26,50 × 26,00 × 21,50 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
