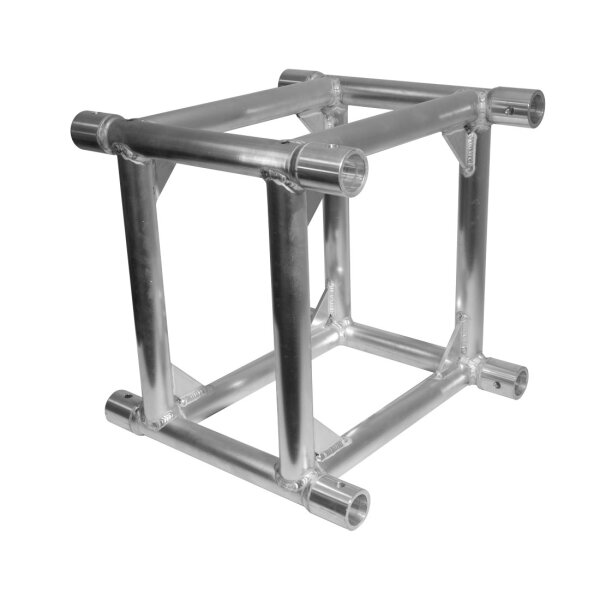

DT 54/4-050 - Heavy Truss Square Straight 50cm
The DT 54/4series is the second version of our "heavy truss" range. The high load capacity combined with a very low weight are the features of this rectangle version 52,9 x 52,9 cm series with conical coupler. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The four tubes are made of 50mm aluminum tube with a wall thickness of 4mm and give this system an outstanding strength -to-weight ratio. The struts have a diameter of 30 mm with a wall thickness of 3mm. The system also includes cones, steel pins and safety clips.
Optionally the system can be extended with various lengths and a special box corner. Extensive accessories such as hooks, connectors, spacers and much more solutions will complete the product range.
The system is from European production which is compatible to the most common systems in the market and is TÜV approved.
Technical specs:- Diametrics main pipe: 50mm
- Wall thickness: 4 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
- Dimensions braces: 30 x 3 mm
- Included in delivery: 4 cones, 8 steel pins, 8 safety clips
- Length: 500mm (without cone)
- Width: 529 mm
- Height: 529 mm
- Weight: 11,8 kg
