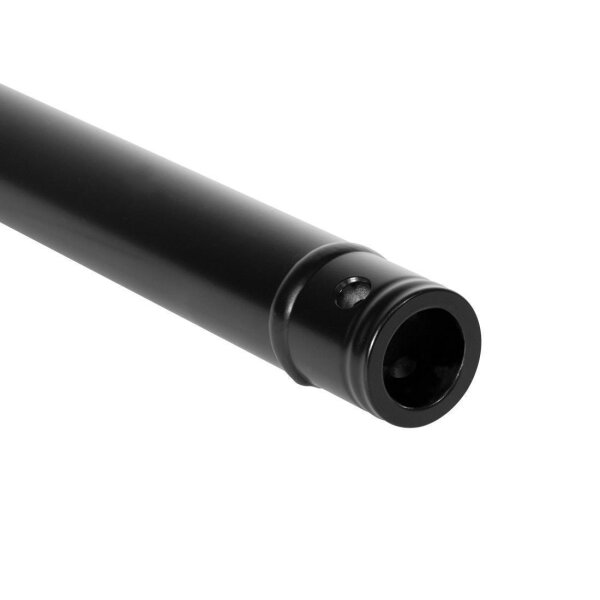

DuraTruss DT31/2-300 - 300cm Black
The DURATRUSS DT31 is a 1-point trussing system, also referred as a "pipe", which is connected to a conical connector, bolt and split pin. The advantage of the quick connector system lies in the fact that it closes force-lockingly with the belt tube and allows rapid assembly during frequent assembly and dismantling. The belt tube of 50 mm aluminum tube with a wall thickness of 2 mm gives this system an excellent weight-bearing capacity ratio.
Optionally, the system can be extended as desired. Corners, T-branches, angles, and circles are available.
Extensive accessories such as hooks, connectors, floor plates, wall brackets, spacers and much more round off the delivery program.
Technical specs:
- Diametrics main pipe: 50mm
- Wall thickness: 2 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
- Color: black RAL 9005
- Included in delivery: 1 cone, 2 steel pins, 2 safety clips
- Length: 3000mm (without cone)
- Width: 50 mm
- Height: 50 mm
- Weight: 2,8 kg
