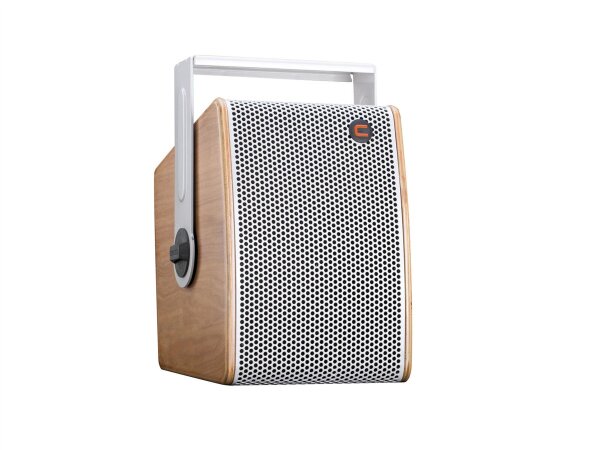

Big sound in small package, mounting bracket included
- Real 120 W power handling with high-end sound quality
- Coaxial transducer for unmatched spatial coherence
- Audiophile grade crossover with right phase topology
- Warm and deep full range system
- HF compression driver with ketone polymere dome
- Birch multiplex cabinet with tongue and groove assembly
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles; with mounting bracket
- Celto Acoustique driver
- Available in various colors
- For application areas such as: Theater; sports centres/gyms; clubs/dancing school; restaurants, bars and hotels
Scope of delivery
- 1 x top
- 1 x mounting bracket
- 2 x knurled screw
- 1 x nut
- 2 x washer
- 1 x safety eyelet
- 1 x screw plug-in terminal
| Power: |
Peak: 480W
Program: 240W
Rated: 120W AES |
| Frequency range: |
65 - 22000 Hz |
| Sensitivity: |
90 dB (1W/1m) |
| Max. SPL: |
117 dB |
| Dispersion angle: |
85° conical |
| Impedance: |
12 ohms |
| Attachment system: |
Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Mounting bracket |
| Connections: |
Input: speaker via screw plug-in terminal |
| Crossover frequency: |
Passive 2500 Hz
Recommended
High-pass 30 Hz, 24db/oct in full-range mode
High-pass 60-140 Hz with iFIX13S or iFIX17S subwoofer |
| Speaker: |
1 x woofer 6" with ferrit magnet
Basket material: aluminum
Voice coil lows 1,5"
1 x compression tweeter highs 1"
Voice coil compression tweeter highs 1"
Diaphragmmaterial: Polymide |
| Type of speaker: |
Coaxial speaker; on ceiling/on wall speaker |
| Type of construction: |
Vented |
| Use of brands: |
Celto Acoustique driver |
| Material: |
Birch multiplex, 12 mm, CNC made with tongue and grove assembly |
| Color: |
Nature, painted |
| Dimensions: |
Width: 19 cm
Depth: 25 cm
Height: 26 cm |
| Weight: |
7.87 kg |
