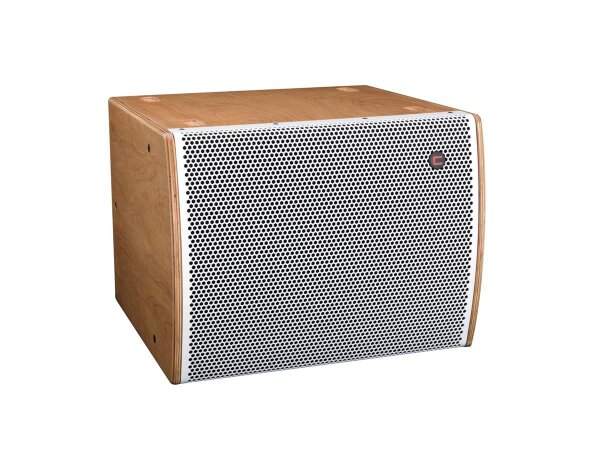

Compact 15" subwoofer with 700 W AES power
- High efficiency for incredible SPL to size ratio
- With rigging points
- Available in various colors
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Power: |
Program: 1400W
Rated: 700W AES |
| Frequency range: |
42 - 1500 Hz |
| Sensitivity: |
97 dB (1W/1m) |
| Max. SPL: |
132 dB |
| Dispersion angle: |
Omnidirectional |
| Impedance: |
8 ohms |
| Housing color: |
Any RAL color available on request |
| Flying points: |
8 x M8 thread |
| Connections: |
Input: speaker via screw plug-in terminal |
| Crossover frequency: |
Active mode only
Recommended
High-pass 35 Hz, 24db/oct
Low-pass 120 Hz, 24db/oct |
| Speaker: |
1 x woofer 13,5" with ferrit magnet
Voice coil lows 3,5" |
| Type of speaker: |
Subwoofer |
| Type of construction: |
Vented |
| Material: |
Birch multiplex, 18 mm, CNC made with tongue and grove assembly |
| Color: |
Nature, painted |
| Dimensions: |
Width: 54,5 cm
Depth: 50 cm
Height: 41,5 cm |
| Weight: |
25,00 kg |
