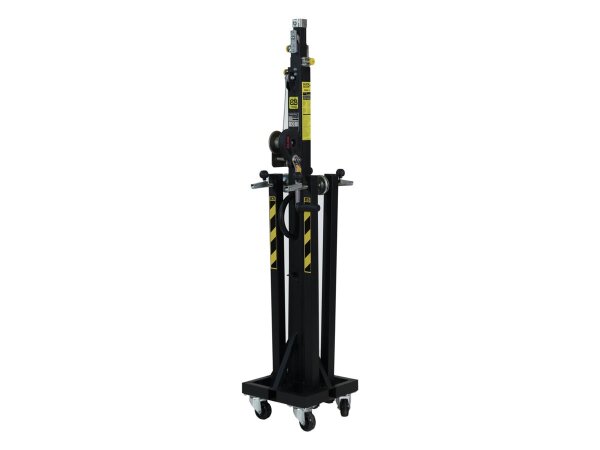

High-quality ground support for weights up to 160 kg, made in EU
- Four-part telescopic ground support
- 4 mm steel rope
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Made in Europe
| Minimum load: |
25 kg |
| Max. Height: |
5.3 m |
| Min. height: |
1.7 m |
| Weight: |
45 kg |
| Adapter: |
35 mm |
| Transport dimensions: |
1.75 x 0.36 x 0.38 m |
| Base area: |
D= 2.07 m |
| Steel rope: |
4 mm |
| Nominal tensile strenght of rope: |
1770 N/mm² |
| Maximum carrying capacity: |
160 kg |
| Shipping weight: |
46,00 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
175,00 × 36,00 × 38,00 cm |
