Alutruss GI-1 Truss Adapter silver

  • Available now!
  • Item no.: 60320380
  • Shipping weight: 2,46 kg
  • shipping class: packet
  • Shipping time: 2 - 5 workdays
    • quantity discount
    • » show
  • Our price: 44,50 €
  • including 19% VAT., plus shipping
  • Link per WhatsApp versenden

Loading ...

Manufacturer:
Category:

Description

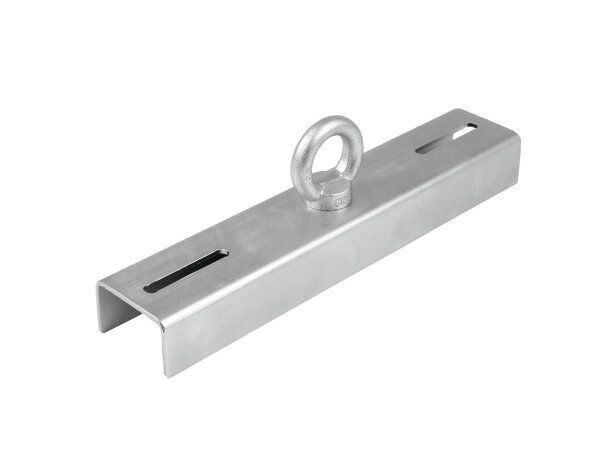

Truss mounting
  • U-profile for hanging truss from the ceiling
  • Designed for trusses from 25 to 40 cm
  • Thanks to its adjustable system, just one adapter can be used for different trusses
  • M20 ring bolt with washer and self-locking nut
  • Without clamps
  • Made in Europe
Max. load WLL (4-fold): 500 kg
Max. load BGV C1 (8-fold): 250 kg
Max. load BGV C1 (10-fold): 200 kg
Max. load BGV C1 (12-fold): 150 kg
Material strength: 3.5 mm
Hole (LxW): 80 x 11.5 mm
Dimensions (LxWxH): 400 x 80 x 50 mm
Weight (without clamps): 2.5 kg
Shipping weight: 2.46 kg
